HVAC Duct Weight Calculator: Free Excel Download
HVAC
May 28th, 2026
ServiceTitan
An HVAC duct weight calculator is a tool, either manual or digital, used to help calculate the work and materials required when installing an HVAC system.
The key inputs of an HVAC duct weight calculator include:
Duct dimensions
Material type
Thickness and insulation
Adjustments
Safety factors
Below, we explain how to use Excel spreadsheets to accurately calculate HVAC duct weights for precise builds. We also cover common mistakes in duct weight calculations, the factors that affect them, and how to streamline the calculation process.
How Does an Excel Duct Weight Calculator Work?
An Excel duct weight calculator functions as a digital calculator, converting physical dimensions into mass through a precise mathematical chain. It uses the fundamental physics formula:
Weight = Surface Area * Thickness * Material Density
In a spreadsheet, this is executed using cell numbers. When you enter the duct’s width, height, and length, Excel instantly calculates the perimeter and total square footage.
The #1 newsletter for the trades.
Simultaneously, lookup functions (like VLOOKUP or XLOOKUP) cross-reference the chosen metal gauge against a standardized density table to pull the correct constant for that specific material.
Also, the Excel calculator is reactive; as soon as an input is modified, an update occurs immediately.
When the formula is inserted, the cells automatically multiply the calculated surface area by the material constant, and often include a ‘Waste Factor’ multiplier, typically 1.15, to account for seams and scrap.
This ensures that every design adjustment provides an instant, accurate weight total for structural and budgetary planning.
What Inputs Are Required to Calculate Duct Weight?
There are six essential inputs required to calculate a duct weight, such as:
Length: This is the linear measurement of the material from end to end. When multiplied by other perimeters, it gives the full area of the material.
Width: This dimension defines the cross-section. It’s important because even small changes impact the total surface area.
Height/diameter: Height refers to the vertical measurement of the material above ground level, while diameter measures the width spanning its cross-section.
Gauge or thickness: In the HVAC industry, thickness is usually measured in ‘Gauge.’ The calculator uses this to determine the weight per square foot. A lower gauge number indicates a thicker, heavier metal.
Material type: Common materials used in HVAC include galvanized steel, aluminum, or stainless steel. Each has a different density, meaning a square foot of 24-gauge aluminum is much lighter than a square foot of 24-gauge steel.
Density: This is the constant (e.g., 0.284 lb/in^3 for steel) that allows the calculator to convert the metal’s physical volume into a weight.
How Do You Calculate Rectangular Duct Weight?
You can calculate rectangular duct weight by multiplying the surface area by the material thickness and density.
Below is the step-by-step calculation:
Surface area: Calculate the perimeter of the cross-section by multiplying the sum of the width and height by 2, then multiplying the result by the section length
Thickness: You convert standard gauge numbers to decimal units using a reference lookup table.
Final calculation: Weight = (Surface Area * Thickness * Density) * 1.15. This adds a 15 percent allowance for seams and scrap to provide an accurate calculation.
How Do You Calculate Round Duct Weight?
Calculating round duct weight is slightly different from calculating rectangular duct weight. This is because the round duct weight uses circular geometry, so you need to calculate the duct wall volume and then multiply it by the material density.
Surface area: Multiply the circumference (pi of π × D, where D is the diameter) by the length (L) to get the surface area. That is: π × D × L.
Weight: Multiply the surface area by the thickness and material density, i.e., SA * T * ρ.
The key difference is that round ducts use 20 percent less metal than rectangular ducts for the same airflow, minimizing friction and material costs.
How Does Material Type Affect Duct Weight?

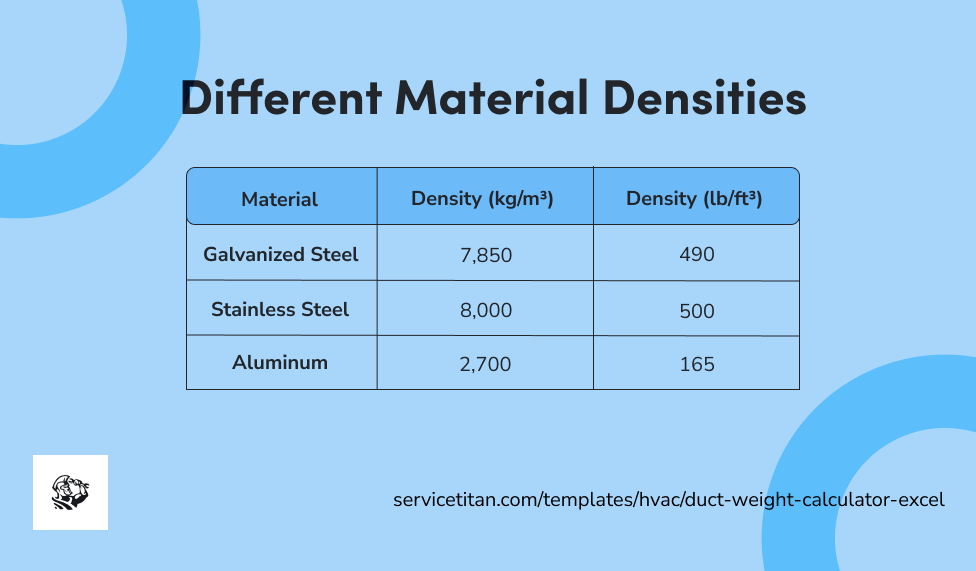

Material density is the weight-per-volume constant. Changing the material selection shifts the base multiplier in your calculation. For example, aluminum reduces the total weight by approximately 65 percent compared to steel. The table below compares the density of different materials:
When using the duct calculator in Excel, you use a data validation dropdown to choose the material. Then, you use the VLOOKUP or XLOOKUP to select the corresponding density for your formula:
Weight = (Surface Area) * (Thickness) * (Material Density)
How Can You Automate Material Selection?
To automate material selection in Excel, you must create a dynamic link between a user selection and a reference database. First, you build a hidden sheet containing different material types and their corresponding densities.
Then click the dropdown menu to apply data validation to the material cell. This restricts inputs to your predefined list.
XLOOKUP(Selection_Cell, Material_Column, Density_Column).
When you select ‘Aluminum,’ the formula instantly fetches 2700kg/m^3, which is the density of Aluminum. This updates the total weight calculation without manual entry being needed.
What Are Common Duct Weight Calculation Mistakes?
Common errors can lead to significant procurement underestimations or structural failures. Avoid these pitfalls:
Incorrect gauge conversion: This happens when you use nominal gauge numbers instead of actual decimal thickness (e.g., using 24 instead of 0.0276").
Unit mismatch: Mixing millimeters with meters or inches with feet without using conversion factors (like 1,000 or 144). This affects the final estimated weight.
Ignoring reinforcements: Failing to add weight for TDC/TDF flanges, slips, drives, or internal bracing. These can add 10–25 percent to the final weight, leading to under-budgeting and structural support failures.
Wrong density: Each material has its own density. A common mistake is applying the wrong density to the wrong material. For example, using galvanized steel density (7,850 kg/m^3) for aluminum (2,700 kg/m^3).
Zero seam allowance: Neglecting the 10–15 percent extra metal required for longitudinal laps and transverse joints.
How Does Duct Weight Affect HVAC Estimates?
In HVAC estimating, weight is a major denominator. Because sheet metal is purchased by the pound, weight directly dictates material costs and scrap budgeting. Beyond raw metal, weight is the primary variable for labor mapping, as estimators apply man-hour-per-pound ratios to calculate fabrication and installation time.
When you use heavier gauges for work, you require more technicians, specialized rigging, or cranes. This results in more labor time and higher project running costs.
Also, total tonnage determines logistics, influencing freight classes and delivery frequency. By connecting weight data to the estimating workflow, contractors ensure that support systems like hangers and struts are structurally sufficient and accurately priced.
How Can Contractors Streamline Duct Estimating?
To scale an HVAC business, you need to connect your technical data with a centralized management system. Streamlining begins by integrating the precise weight calculations into an automated estimating and job management workflow.
Centralizing data with ServiceTitan
ServiceTitan serves as the ultimate hub for contractors. Syncing calculated duct weights and material costs brings all vital project data into a single accessible platform. This comprehensive software streamlines your daily workflow through a suite of major features like:

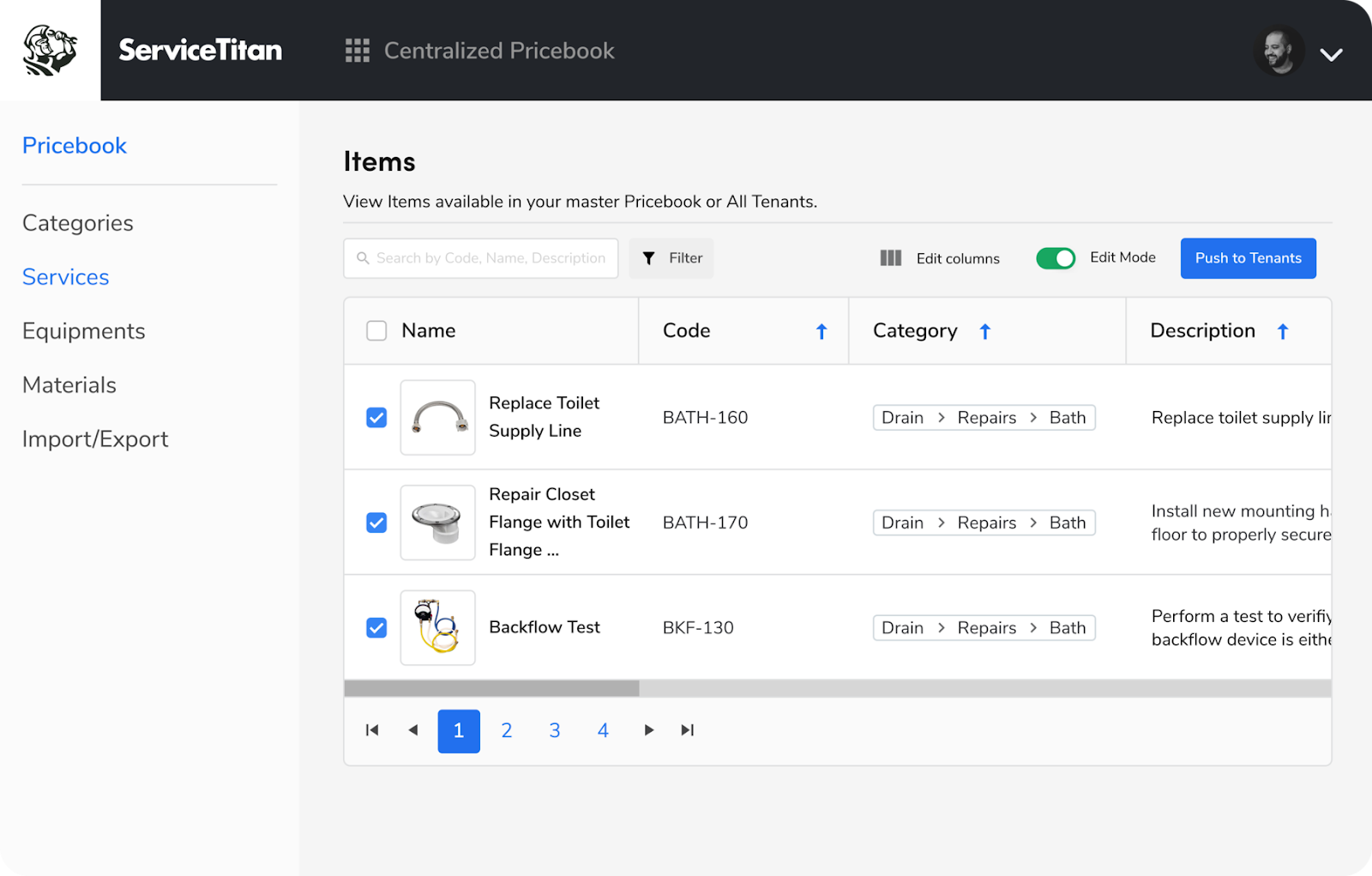

ServiceTitan Pricebook: Contractors can add the calculated weight and material costs to ServiceTitan’s pricebook. The software automatically applies these to the preset labor rates, ensuring the quote reflects the actual cost of the service.

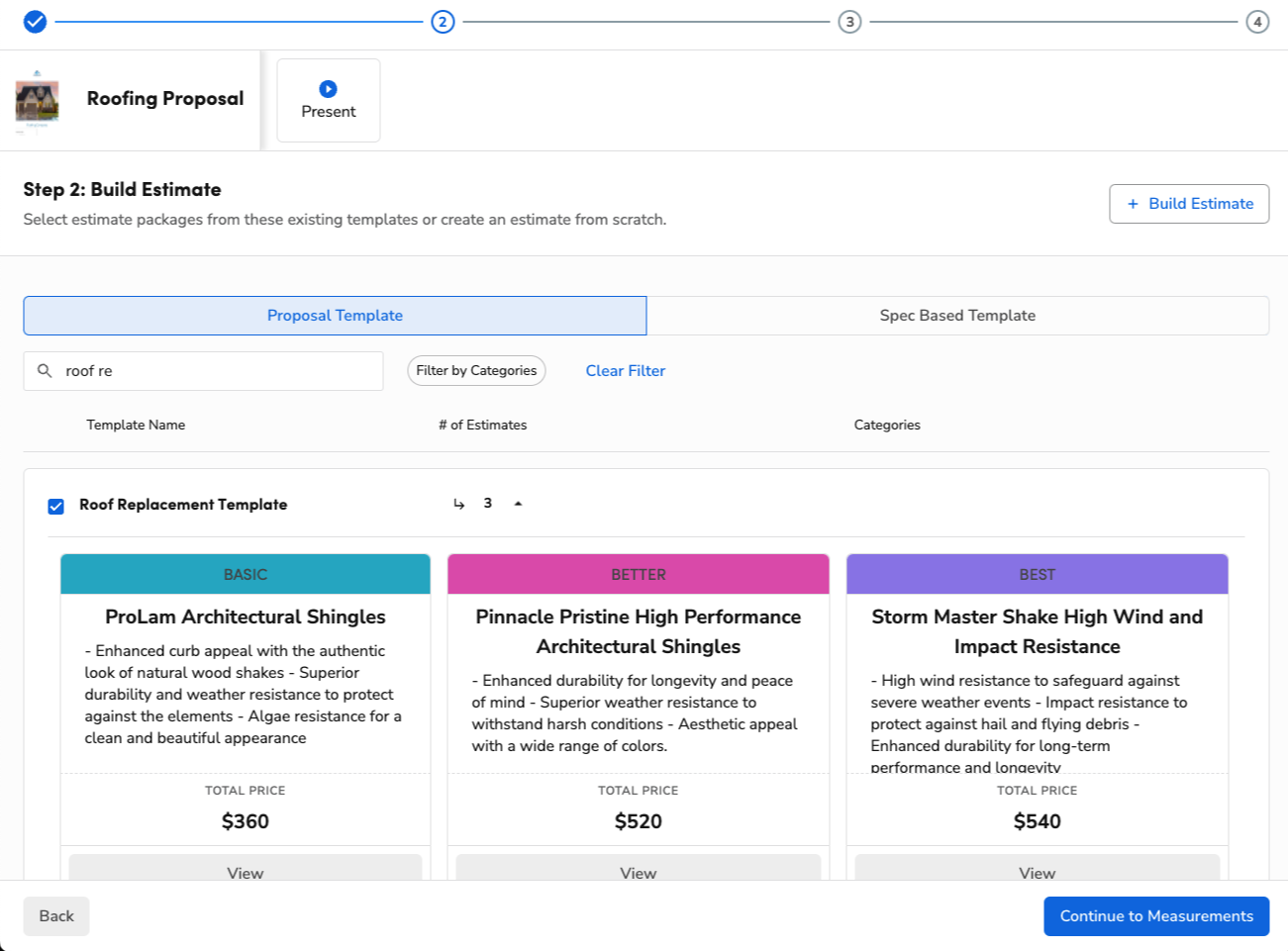

Professional proposals: ServiceTitan transforms technical weight data into ‘Good, Better, Best’ proposals. Customers see professional, easy-to-read options on a tablet, which improves closing rates.

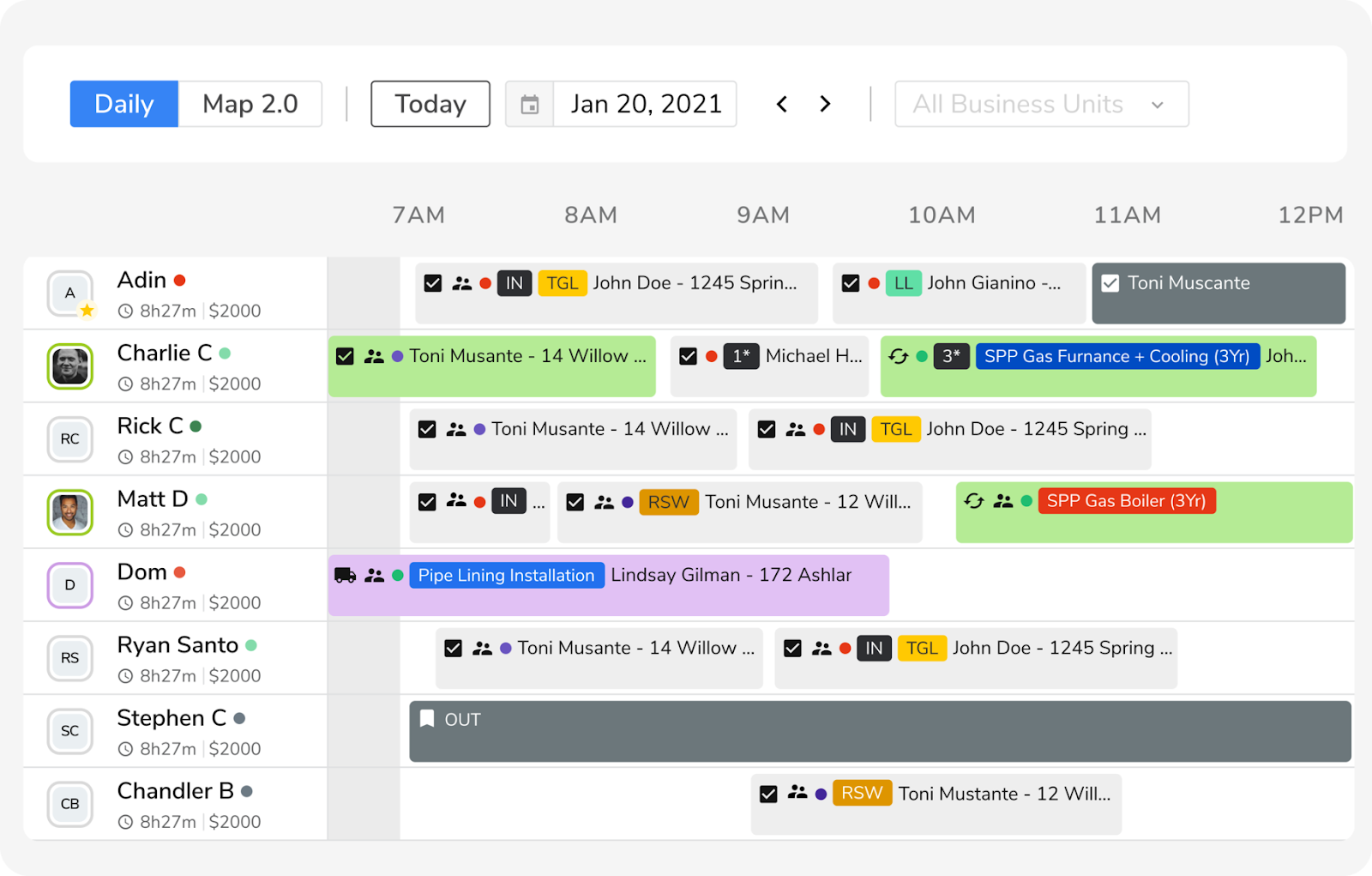

Job management: Once a proposal is signed, ServiceTitan converts it into a live job. It tracks the technician's time against the estimated labor hours, allowing supervisors to see whether worktime is being managed adequately.
ServiceTitan also syncs duct weight calculations with live installation progress, ensuring every single pound of metal factored into your estimate converts to net profit.
Over to you!
Maintaining accurate job estimates is important for your business’s profitability.
Download our free calculator today to streamline your HVAC estimations, reduce errors and waste, and keep your business profitable.
