HVAC CFM (cubic feet per minute) measurement tools are instruments that practitioners and mid-level technicians use to measure the airflow volume of HVAC systems for residential and commercial projects.
With different types of CFM tools on the market, you need to know what each tool measures and which is best for each measurement. Here’s a quick overview of what each one measures, what they cost, and their limitations.
In this guide, we’ll look at each of these in-depth and offer tips on how to choose the right one for the job.
What Are HVAC CFM Measurement Tools?
HVAC CFM measurement tools are used by technicians and Testing, Adjusting, and Balancing (TAB) professionals to measure the air volume moving through an HVAC system. These calculations are measured at registers, grilles, diffusers, within ducts or the air handler, and are expressed in CFM.
The main distinction among these tools is that not every single one measures CFM. Capture hoods and airflow grids measure total airflow, while anemometers measure air velocity in feet per minute (FPM).
So, when you use the latter, you’ll need to measure CFM separately by multiplying the FPM by the free area of the opening where you’re measuring.
Accurately measuring airflow volume is very important for an HVAC system. Having the right amount of air passing through a system ensures it remains efficient and lasts as long as expected, creating a comfortable environment for your customer.
So, focus less on why measuring is important and more on choosing the right tools to do it accurately.
The #1 newsletter for the trades.

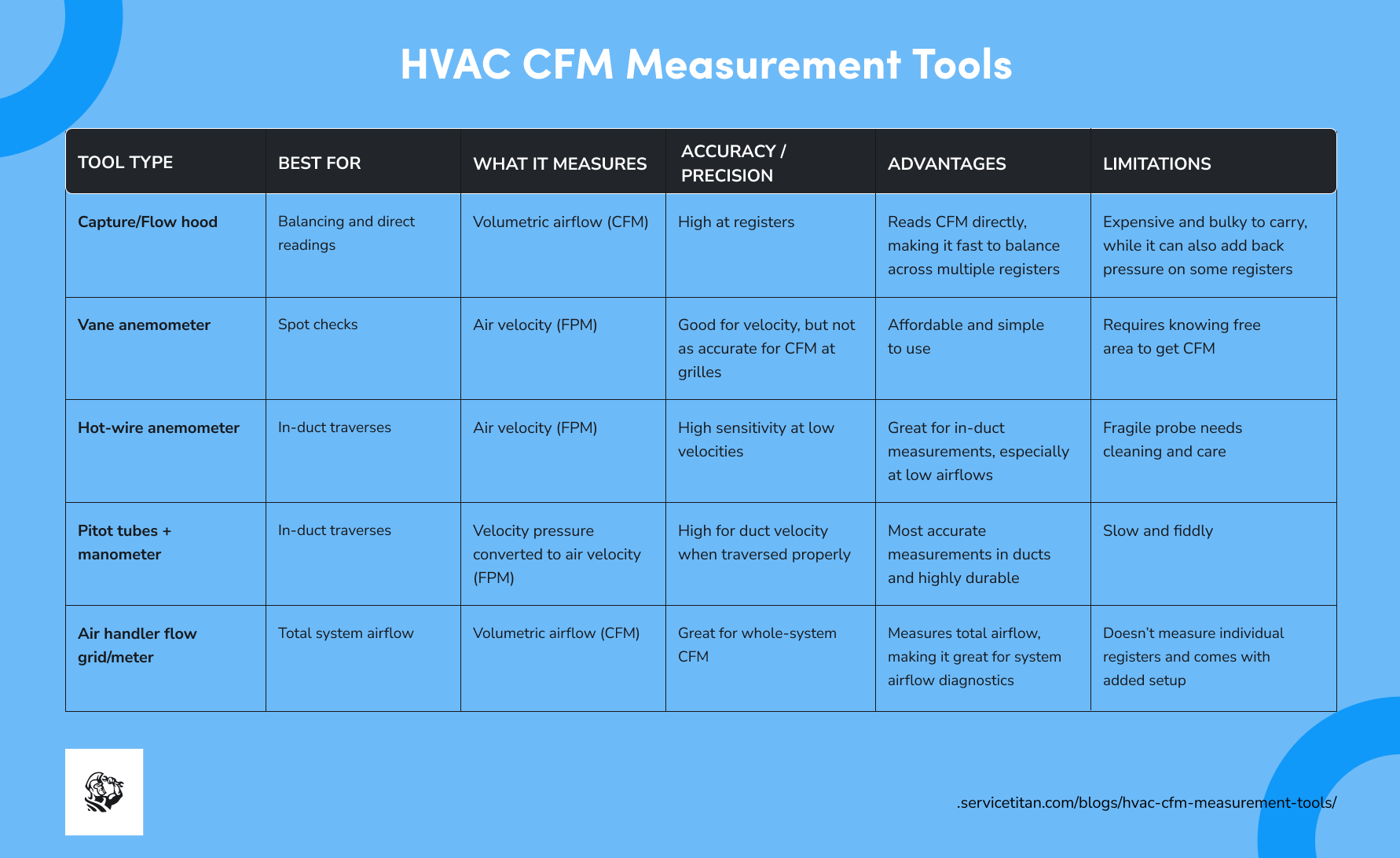

Types of HVAC CFM Measurement Tools
There are five main types of tools that are used for airflow CFM measurements. There’s no single right or wrong one, as it depends entirely on the job you’re doing, as well as where and how you’re taking each measurement.
Some tools are used in grilles and diffusers, while others are for ducts or even the entire system. Let’s see how each type is used and where you’ll be able to use it.

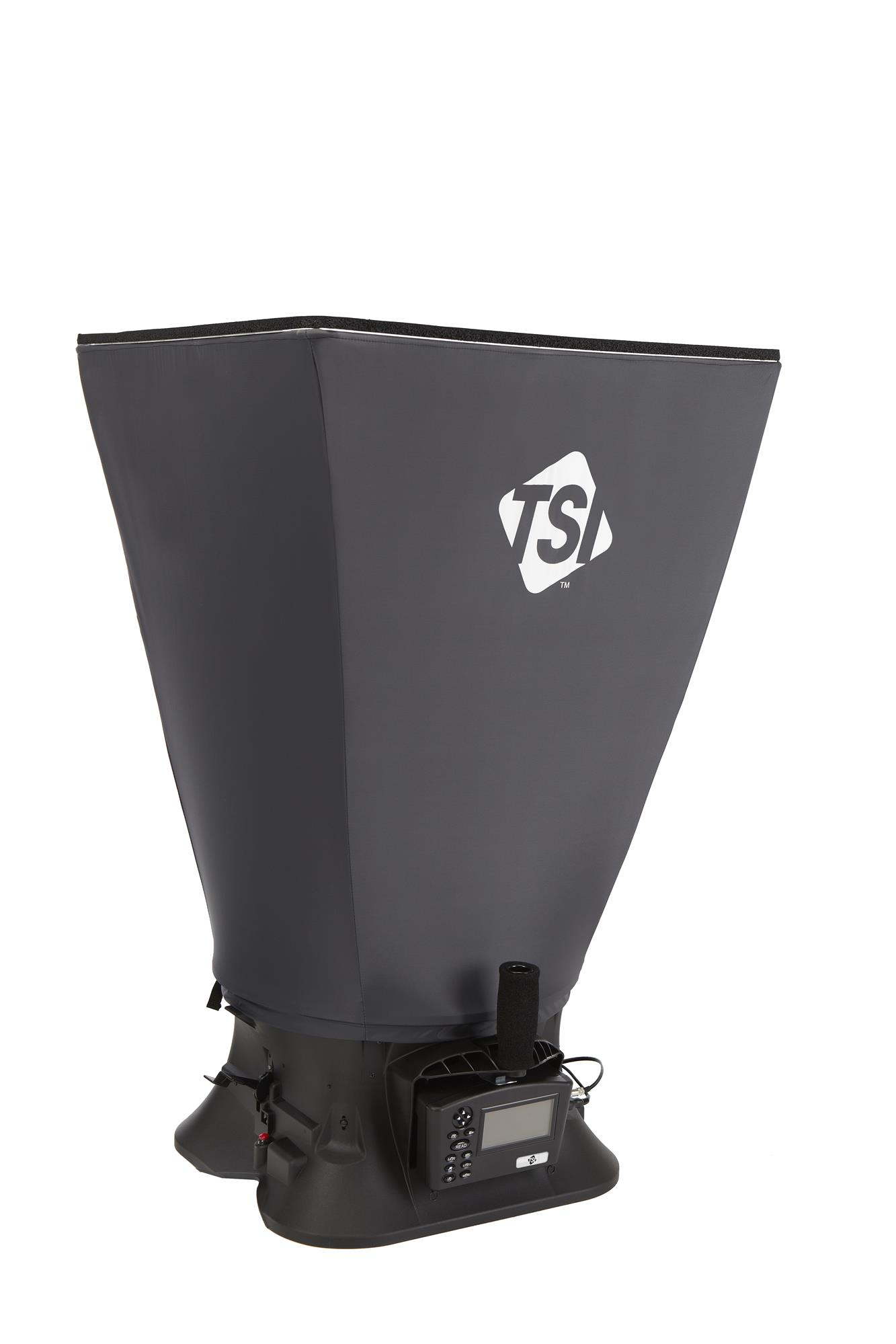

Airflow capture hoods / Flow hoods
Source: tsi.com
Capture hoods (also known as balometers and flow hoods) are the standard tool for terminal readings and airflow balancing. These are placed in front of a grille or diffuser and measure the CFM directly. More specifically, the hood lets air entering or leaving the register pass through it, giving you a direct reading of the airflow volume.
Airflow capture hoods are the fastest tools for the job, as you just have to go from register to register and measure the CFM by placing the hood over each one. While their speed makes them ideal for both residential and commercial jobs, it comes with some caveats.
The main one is the cost, as they’re usually in the $1,500-$3,000+ range, with most professional tools from TSI costing closer to the higher end of that range. At the same time, because of the way balometers work, the tool might create some back pressure on some registers, which will give a slightly inaccurate reading. But it’s still the standard tool for CFM readings.

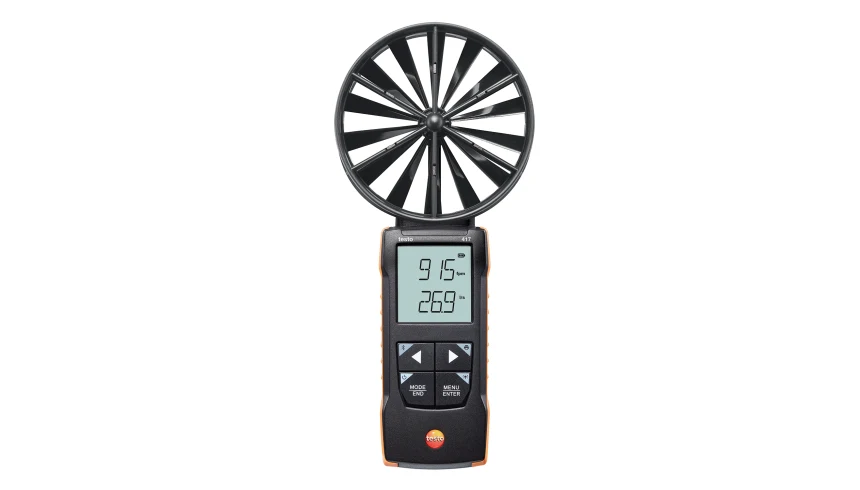

Vane anemometers
Source: testo.com
Vane anemometers are used by many technicians for airflow measurements, primarily because they’re affordable and simple to use. These use the vane (a small rotating fan) to measure how fast the air passes through the register or duct (air velocity).
Unlike flow hoods, the anemometer’s measurement isn’t CFM. You’ll need to multiply the air velocity in FPM by the free area in square feet to get the actual CFM.
This is one of vane anemometers’ main caveats, as the free area isn’t a set number. You’ll have to account for the grille bars, which range from model to model, making the free area around 60–75 percent.
That said, for basic measurements, vane anemometers are one of the best choices and are one of the tools you should have in your truck. They come cheap: entry-level tools like the BT-100 handheld anemometer cost around $50, while more professional models like the Testo 417 can cost up to $500 for the whole kit.

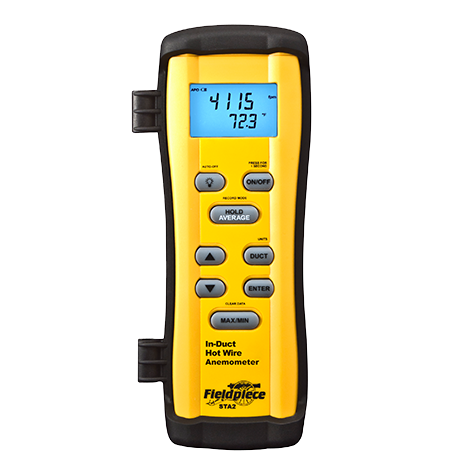

Hot-wire anemometers
Source: fieldpiece.com
Another HVAC anemometer type you’ll find on the market is the hot-wire anemometer. These measure air velocity, like their vane counterparts, but in a different way that can be more accurate.
Hot-wire anemometers use heated sensor wires that cool down as air passes through them. This temperature change is then converted into air velocity.
Because these are smaller than vane versions, you can use them to traverse ducts to get the most accurate measurements across all points of the duct’s cross-section. And they’re also more sensitive than vanes, which is why they can measure low velocities better.
In terms of pricing, hot-wire tools are a bit more expensive, with the Testo 405i starting at $120–$130 and models like the Fieldpiece STA2 in-duct hot-wire anemometer costing up to $500. Some very advanced hot-wire kits also come with Bluetooth connectivity and wireless probes but cost closer to $800–$1000 in total.
These do have some caveats, though. The sensor used for measurements is fragile, so you’ll need to clean and calibrate it occasionally to keep it accurate.

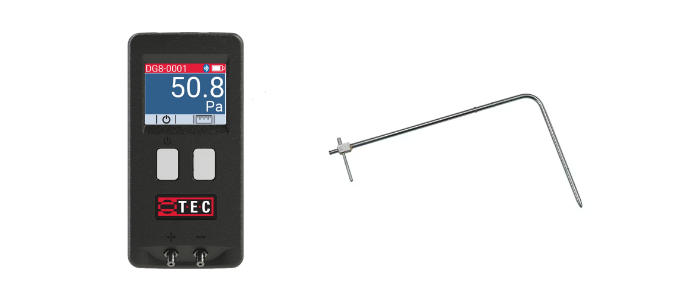

Pitot tubes and digital manometers
Source: dwyeromega.com and trutechtools.com
Pitot tubes are used alongside digital manometers for calculating CFM through the system’s in-duct pressure.
The pitot tube is inserted into the duct and measures two things: total pressure from the airflow and static pressure at different points inside the duct. The difference between these two measurements is the velocity pressure, which is converted by the manometer into air velocity.
The most important thing to keep in mind when using these is that you’ll need to traverse the duct to take readings where the airflow is faster (center) and slower (walls). Then, you use the average of these readings for the CFM calculation.
This is a slower method but remains the most accurate one for system balancing inside the duct and is widely used by TAB professionals and commercial HVAC technicians.
When it comes to cost, pitot tubes are in the $150–$200 range for most jobs but you can also get larger ones for up to $600. Dual-port digital manometers with data logging are essential tools HVAC technicians should have and usually start at $150, with some, like the DG-8 manometer, going up to $600.

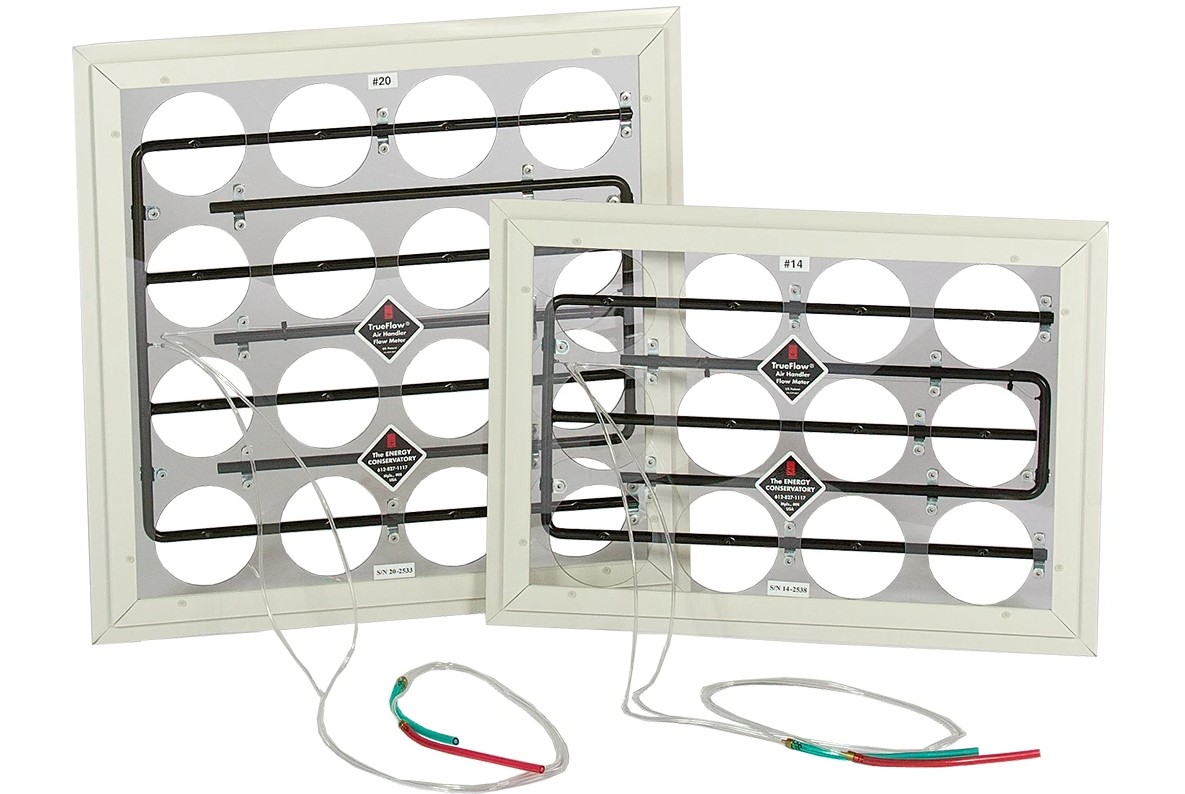

Air Handler Flow Meters and Airflow Grids
Source: inspectortools.com
The last type of CFM instruments are air handler flow meters and grids. Instead of measuring at the register or duct, these take measurements through the air handler and give you readings for the whole system. Meters and grids are placed in the return or across the air handler and measure the total CFM the system is moving.
These come in kits that range from $500 to $1,500+ and are primarily used to diagnose airflow issues that can only be found when viewed across the whole system.
How to Choose the Right HVAC CFM Measurement Tool
Making the right choice for your CFM measurement tools is purely based on the work you do. So the most expensive one isn’t necessarily the right one for you. Let’s check out each factor to help you narrow down your choices:
Step 1: Where are you measuring? This is the most important step, as it narrows down your options to one or two tools. If you want to measure airflow directly from the registers, you’ll need a capture hood or a vane anemometer. If your CFM measurement is inside the ducts, you’ll need a hot-wire anemometer or a pitot tube/digital manometer combo. And, if you’re measuring at the air handler, you’ll need a flow grid.
Step 2: How much accuracy do you need? For a quick airflow diagnostic job, a vane anemometer will be enough, since the approximate CFM is sufficient to spot a problem. If you’re balancing a system or commissioning for a commercial HVAC job, you need the accuracy that comes with pitot tubes or capture hoods.
Step 3: What’s your workflow and work volume? If you’re a residential service tech who only checks airflow occasionally, you won’t need to invest in a capture hood. However, if you’re a TAB professional who takes on commercial jobs, you’ll need a large pitot tube and digital manometer for accurate data logging.
Step 4: What jobs are you taking on now? Anemometers, hoods, and pitot tubes do different jobs. Buy the one that helps you do your job now, and, if you need to do extra tasks, like balancing, invest in or rent more advanced instruments.
How to Measure CFM in an HVAC System
Because CFM measurements are taken using different types of tools, the actual process varies. Let’s check the different approaches, based on where you’re measuring:
Register or diffuser: The most direct method is to place the capture hood over the grille and get the CFM measurement. If you don’t have one, hold your vane anemometer at the grille, capture the air velocity, and use it to calculate the CFM.
Inside duct: No tool measures CFM directly inside the duct, but you can measure air velocity. Whether you use a hot-wire anemometer or a pitot tube and manometer, you’ll need to take multiple readings across the duct and use their average to calculate the CFM (since velocity is different in the center and at the walls).
Total system: For total system airflow, you just have to place a flow grid at the air handler, which will calculate the system’s CFM.
Regardless of the method and tools you use, you’ll need to have a number to compare these measurements to. The system itself has a target airflow that you can compare to the measured airflow. This is where another tool, ServiceTitan’s free HVAC CFM calculator, helps you calculate the target CFM for a specific space. The formula is based on the room volume multiplied by the air changes per hour (ACH) then divided by 60. Use this as a benchmark for the airflow and compare your actual measurements to it to make a diagnosis.
You can use the CFM calculator alongside all of ServiceTitan’s other free HVAC tools.
How to Improve HVAC CFM Measurement Accuracy
Improving the accuracy of these measurements is done the same way across all tools and methods. For one, whether you measure in ducts (where it’s essential) or registers, let the system stabilize first and then take multiple readings and use the average. That way, you get the most accurate measurement at that specific time.
Also, because many of the CFM tools measure air velocity, you’ll need to get the free area right. Depending on the grille type, it can range from 60 to 75 percent, so finding the actual number matters for accuracy.
Plus, always make sure to use the right tool for the location where you’re measuring while keeping it calibrated and clean. Don’t force a vane at a grille, and keep your hot-wire anemometers clean and calibrated so that every reading is as accurate as possible.
Over to You!
There’s no single CFM measurement tool that will work in any scenario. You’ll need to find the one that fits your job best, whether that’s a capture hood for direct readings and airflow balancing, a vane anemometer for quick checks, a hot-wire anemometer or pitot tube for in-duct measurements, or a flow grid for whole-system airflow.
That said, measuring the air is only half the job. You should be doing something with the numbers you get. That’s where ServiceTitan comes in and turns your field readings into action. Features like custom forms and digital job notes, photo attachments, and the Pricebook and proposal tools turn the measurements you take into part of the customer record.
ServiceTitan helps your HVAC business record CFM measurements right on the service call, document readings in customer reports, and turn airflow problems into jobs booked in the field. Book a demo to learn how.
Frequently Asked Questions (FAQs)
Q1. What is the best tool for measuring HVAC CFM?
There isn’t a one-size-fits-all tool for HVAC CFM. If you want to take direct CFM measurements at the register, capture hoods are the best tools for the job. If you’re just doing quick diagnostics, a vane anemometer will be enough. If you want to measure in the duct, pitot tubes and manometers are your best bet, while flow grids at the air handler give you a total system CFM measurement.
Q2. What is the difference between a flow hood and an anemometer?
A capture hood (or flow hood or balometer) measures CFM directly at the register or diffuser. Anemometers, whether vane or hot-wire, measure air velocity, which you’ll have to use to calculate CFM by multiplying it by the free area.
Q3. What are the most common HVAC CFM measurement mistakes?
The most common mistakes in HVAC CFM measurement are taking single readings in the duct instead of traversing it, using dirty or uncalibrated tools, and not measuring the free area correctly when calculating CFM from the air velocity at the register.
Q4. How do HVAC CFM measurement tools support air balancing?
Capture hoods are the main air balancing tool and are used to measure CFM at every register. This helps you compare it to the target airflow, adjust as needed, and remeasure using the capture hood.
