Common HVAC Troubleshooting Scenarios: A Technician's Guide

Every HVAC technician needs to know how to spot the symptoms that indicate an internal issue with an HVAC system. That’s the only way to identify potential malfunctions and diagnose the underlying problem.

While it may be challenging to anticipate all troubleshooting scenarios, there are some common issues that indicate specific problems. This article is your holy grail if you’re looking for a comprehensive list of HVAC problems and effective solutions.

Let’s break down the most common HVAC troubleshooting scenarios for you.

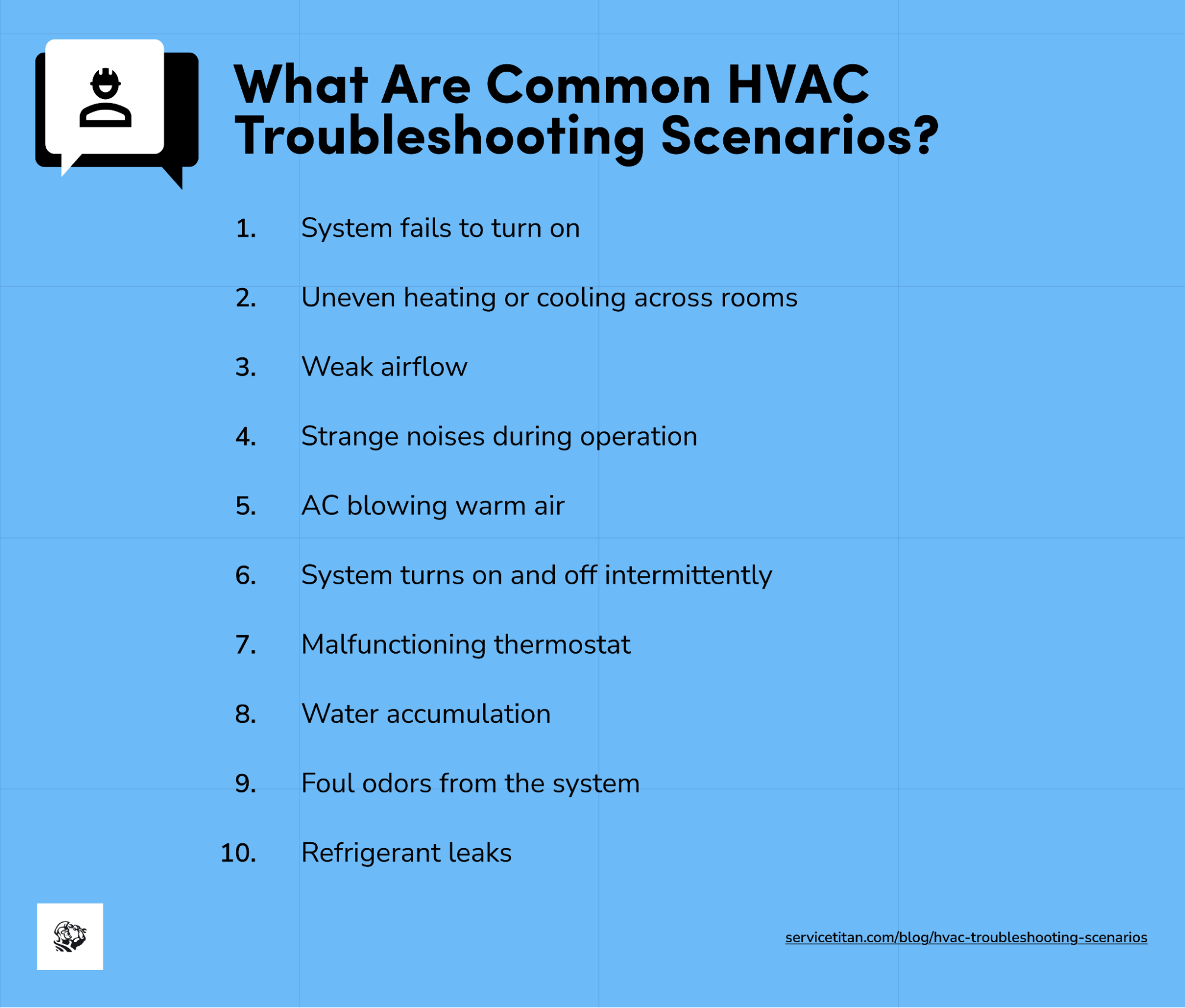

What Are Common HVAC Troubleshooting Scenarios?

Some HVAC problems show up immediately. Others hide behind symptoms that seem unrelated. Here are the scenarios that every tech should be ready to spot and solve:

1. System fails to turn on

When an HVAC system is completely unresponsive, you can check for a blown fuse or tripped breaker, inspect the capacitor for failure, and test the contactor. Identifying which component is at fault guides the repair.

2. Uneven heating or cooling across rooms

If some rooms are warmer or cooler than others, inspect for blocked vents, assess ductwork balance, check for leaky return ducts, and examine the blower motor for wear. Each of these factors can contribute to uneven airflow and temperature.

3. Weak airflow

If your HVAC system is blowing less air than usual, it usually means something is blocking airflow. Start by checking the air filters—clogged filters are the most common cause. If the filters are clean, inspect the evaporator coils for dirt buildup, look for blockages in the air ducts, and make sure the fan motor is working properly.

4. Strange noises during operation

If your HVAC system is making banging, buzzing, clicking, or squealing noises, it’s a sign that something’s loose in the system. To confirm the root cause:

• Turn off the system and inspect panels, screws, and fasteners. Tighten anything that’s come loose.

• Inspect the blower wheel. A broken or unbalanced blower wheel can cause banging or rattling sounds. If damaged, it needs replacement.

• If it’s a buzzing or humming noise, the contactor or capacitor might be failing. These must be checked by a technician.

• Hearing a persistent clicking or loud squealing? Then the compressor might be failing.

5. AC blowing warm air

First, ensure the system is set to cool mode at a temperature lower than the room's temperature. Then, inspect the air filter to ensure it’s not clogged by dust or debris.

If the situation persists, check the refrigerant lines for ice buildup. That typically means the system is low on refrigerant. But if that’s not the case, the compressor might be faulty and needs to be replaced.

6. System turns on and off intermittently

If your HVAC system turns on and off too often, check for oversized equipment, clogged filters, low refrigerant levels, or a poorly placed thermostat. These issues can cause short cycling, forcing the system to work harder, waste energy, and wear out faster.

7. Malfunctioning thermostat

If your thermostat has a blank display, shows wrong readings, or doesn’t respond, check for loose wiring, low batteries, or dust buildup behind the faceplate. These issues can prevent the system from receiving accurate temperature signals or turning on properly.

8. Water accumulation

Whenever water pools around the air handler, there might be a leak in the system. Check the condensate drain line for clogs, inspect the condensate pump for damage, and look for signs of rust or cracks in the drain pan. These issues can stop water from draining properly, leading to leaks and potential water damage.

9. Foul odors from the system

If your HVAC system releases foul odors, identify the source quickly. Musty smells often mean mold or mildew is growing inside the ducts or unit, while a rotten egg odor may indicate a gas leak—a serious safety hazard.

Instead of trying to fix it yourself, turn off the system immediately and call a professional if you suspect a gas leak.

10. Refrigerant leaks

If you suspect a refrigerant leak, check for ice forming on the refrigerant lines, hissing or bubbling sounds, and reduced cooling performance. These signs indicate a loss of refrigerant, which can damage the compressor and lower efficiency. Contact a technician to locate and repair the leak safely.

These are the baseline symptoms every HVAC technician should be ready to identify. The next sections will break down each in more depth. You’ll learn how to approach them, which tools to use, and how to troubleshoot quickly and effectively.

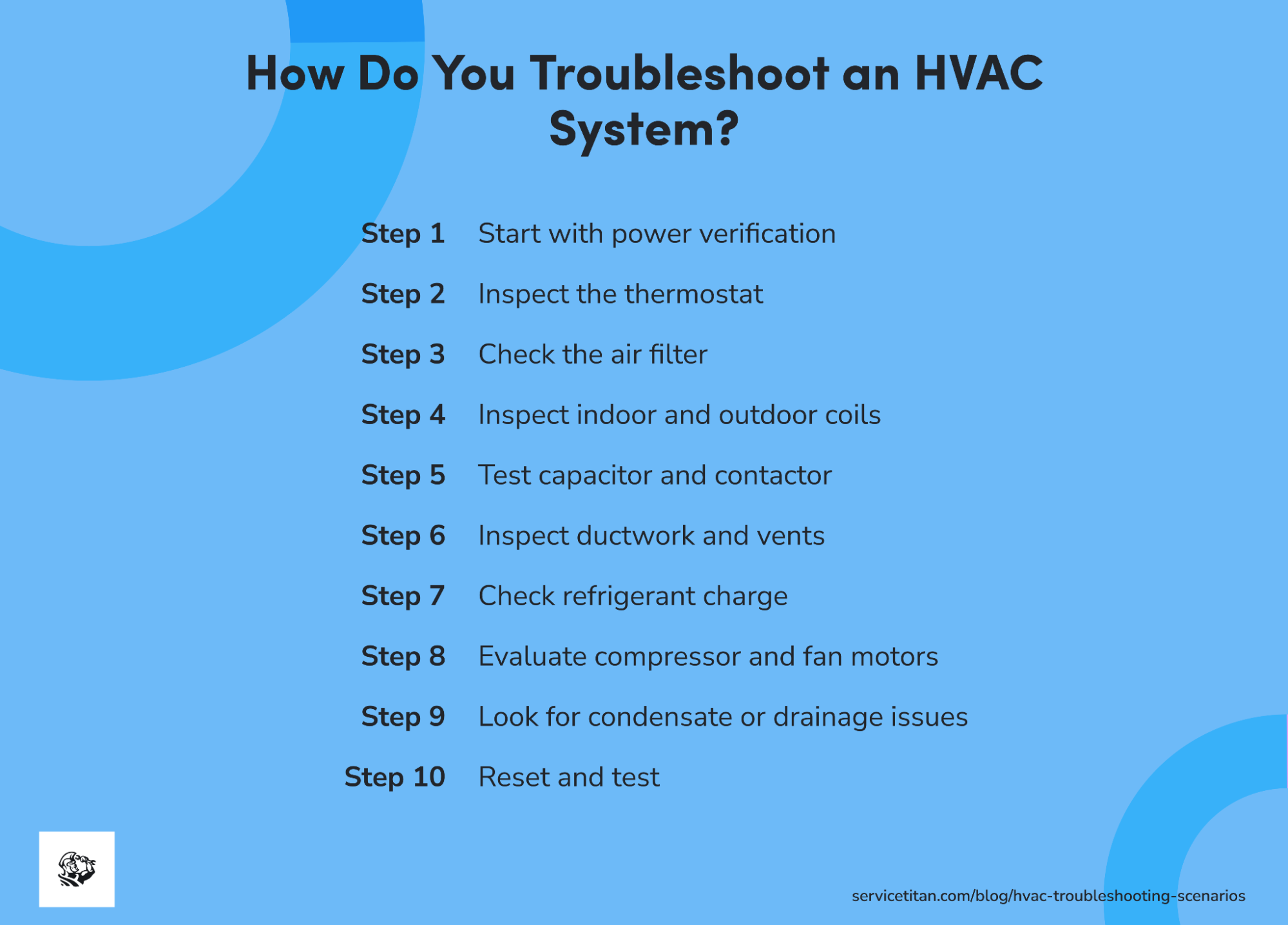

How Do You Troubleshoot an HVAC System?

Troubleshooting an HVAC system is a step-by-step process of assessing symptoms until the actual problem is revealed.

Here’s the process technicians use to troubleshoot systems reliably:

1. Start with power verification

Before anything else, confirm that the system has power:

• Check the disconnect box and circuit breaker.

• Use a multimeter to test for voltage at the contactor or transformer.

• If the thermostat is blank, check its batteries or low-voltage power supply.

No power? You’re chasing an electrical fault. Power is good? Move on to the next step.

2. Inspect the thermostat

The thermostat is the command center. If it’s not reading or responding correctly, nothing else will work. So, check the following:

• Is it set to the correct mode?

• Are the temperature settings reasonable?

• Are there loose wires, corrosion, or insect nests?

• Bypass the thermostat at the control board to rule it out entirely.

3. Check the air filter

Clogged filters restrict airflow, overheat components, and mimic more serious issues:

• Ask the client when they last changed it.

• Pull the filter and inspect for dirt, dust, or collapse.

• Always replace suspicious filters.

4. Inspect indoor and outdoor coils

Dirty coils reduce efficiency, cause freeze-ups, and confuse diagnostics. If it’s indoor, look for dust buildup or ice. But if the unit is placed outside, check for leaves and dirt.

Use coil cleaner if needed and verify airflow afterward. Clean coils help determine whether the issue is airflow or refrigerant-related.

5. Test the capacitor and contactor

Discharge capacitors before testing. Use a multimeter to verify the microfarads [a technical term used to describe the level of capacity in a capacitor] against the label specifications. Inspect contactors for pitting, arcing, or burnt contacts. Replace anything that’s out of spec or visibly damaged.

6. Inspect ductwork and vents

Blocked, leaking, or poorly designed duct systems cause uneven temperatures and weak airflow:

• Visually inspect accessible ducts for gaps or crushed sections.

• Feel for strong airflow at each register.

• Look for disconnected ducts in attics.

7. Check refrigerant charge

Low refrigerant leads to poor cooling and short cycling. Overcharging causes high pressure and excessive stress on the compressor:

• Use gauges to read superheat and subcooling.

• Compare the readings to the manufacturer's specifications on the unit data plate.

If the charge is low, you’re likely dealing with a leak.

8. Evaluate compressor and fan motors

If the system isn’t cooling or heating, but power is confirmed, the motors could be the problem.

• Listen for humming, clicking, or grinding sounds.

• Measure and draw the amp to confirm the load against the nameplate rating.

• Check the capacitors again, as they often accompany motor failure.

9. Look for condensate or drainage issues

Water pooling under the unit or near vents is a red flag:

• Check the pan, pump, and drain lines.

• Look for clogs with a wet vac.

• Add drain tablets or vinegar to reduce algae buildup in the long term.

This is especially important during humid seasons when systems run nonstop.

10. Reset and test

Once an issue is addressed, reset the system:

• Cycle power.

• Set the thermostat to call for heating or cooling.

• Monitor the unit through a full cycle.

You’re not done until the system runs cleanly, quietly, and efficiently under load.

Now, we’ll examine how these steps are modified to diagnose issues in specific troubleshooting scenarios.

How Can You Diagnose Uneven Heating or Cooling?

When some rooms are burning up while others stay ice cold, the system isn’t distributing air properly. That’s not always a system-wide failure; it’s often a localized issue with airflow or ducts. Here’s how to find the issue:

Talk to the occupants

Technicians skip this too often. Ask which rooms feel off, when it started, and if it’s specific to any time of the day. Document the areas affected and the location of the thermostat.

This gives you a working map before you even open the panels.

Check the filter again

Restricted filters choke airflow and always affect the remotest rooms first. If the filter is dirty, change it immediately and reassess the airflow. If the filter is clean but undersized, it may still contribute to the problem.

Inspect supply and return vents

Walk room by room and check if vents are open and unobstructed. Find out if there are return vents in the cold/hot rooms.

Check for disconnected or crushed ducts

Look for collapsed flex ducts, loose connections, or torn insulation. Use a flashlight and your hand to feel for airflow or temperature differences at each duct run.

Test blower motor performance

If airflow is weak across multiple rooms but the system runs, check the blower. A weak blower won’t push air far, especially in larger homes or multi-story buildings.

Check for zoning issues (if applicable)

If the system uses motorized dampers, confirm that they open fully. Failed zone dampers are a principal cause of uneven temperatures in zoned systems.

Evaluate insulation and duct design

In older homes, uneven temperatures are often a result of design flaws. Long duct runs without insulation lose heat in winter and gain it in summer. Undersized ducts or poor layout cause imbalances that the system can’t fix.

Use a thermal camera or thermometer for confirmation

Use an infrared (IR) thermometer to check the temperature difference between the supply and return at each vent. Use thermal imaging to identify cold spots, duct leaks, or areas with poor insulation.

How Do You Fix Weak Airflow in HVAC?

Weak airflow leads to frozen coils, overheating, short cycling, and equipment failure.

Here’s how to troubleshoot and resolve it:

1. Pull and inspect the air filter

If the filter is dirty, collapsed, or installed backward, replace it. Verify that it’s the correct size and MERV rating for the system. If it’s too restrictive, airflow drops.

2. Check the return and supply vents

Look for and remove any obstructions in the vents. Use a flow hood or anemometer if needed to verify airflow volume.

3. Inspect the blower assembly

Inspect the blower wheel for dust buildup. A dirty or dying blower motor robs power from every vent in the system.

4. Look inside the evaporator coil

Find out if the coil is clogged, and use a coil cleaner or a brush to clean it.

5. Inspect the ductwork

Feel for disconnected or kinked flex ducts and look for crushed or loose connections.

6. Check static pressure

If the system sounds like it’s working but the air still isn’t moving, measure total external static pressure.

7. Verify fan speed settings

Some systems are set too low at the factory or after a previous repair.

8. Inspect zoning systems if installed

Zoned homes often have motorized dampers that block airflow when they fail.

9. Don’t ignore the return side

Most airflow diagnostics focus on supply, but return matters just as much. Check for return grille size, closed doors that restrict return air, and crushed or pulling return ducts.

Why Is the HVAC System Noisy?

HVAC systems aren’t silent but nor are they supposed to be loud.

Here’s how to identify and fix unusual noise:

Banging or clunking noise

This is mechanical. Something’s loose, broken, or hitting metal. Check the blower wheel, compressor mounts, and look for foreign objects.

Squealing or screeching

This is usually traced to belt issues or bearing failure. Replace belts and lubricate bearings to fix it.

Clicking

Clicking can be electrical or mechanical. Rapid or repetitive clicking could mean a faulty relay, control board, or arcing contactor. Indoor unit clicking may be caused by the fan blades hitting a wire or insulation.

Buzzing

Buzzing is typically caused by electrical strain or failing components. Check the contactor, test the capacitor. A swollen or weak capacitor can cause the fan or compressor to buzz instead of starting. Also, inspect for loose wiring.

Hissing

Hissing usually means escaping air or gas. Locating the sound will help you know what kind of leak it is.

There are others like popping, gurgling, and rattling sounds. Whichever noise it is, make sure to check for the fault and fix the root cause.

What Are Common Thermostat Problems in HVAC?

The thermostat is where heating or cooling starts. If it’s off, everything will act up. Here’s how to spot and fix the most common thermostat failures technicians run into:

Incorrect settings

It sounds basic, but check first. Reset settings or disable schedules. Teach the customer how to use it properly.

Dead display or no power

If the screen is blank, the thermostat might not be getting power. Replace dead batteries, reconnect loose wires, or replace a failed transformer.

Loose or corroded wiring

Behind the faceplate, wires can loosen, shorten, or corrode. Strip and re-terminate wires cleanly. Replace any corroded conductors.

Bad thermostat location

Thermostats mounted in the wrong place give false readings. Relocate the thermostat to a neutral interior wall. Accurate readings depend on good placement.

Improper subbase or compatibility issues

When replacing a thermostat, techs sometimes mismatch models. Confirm model compatibility and cross-check wiring diagrams with equipment specs.

How Do You Troubleshoot AC Blowing Warm Air?

When the system is running, but the air coming from the vents feels like room temperature, you’ve got a cooling failure. The key is to isolate where the breakdown is happening.

Here’s the sequence that helps you get to the root cause quickly:

• Verify the thermostat is set to cool at a temperature lower than the indoor temperature.

• Verify the outdoor unit's operation. If the condenser is dead, there will be no heat rejection, which eventually translates to warm air.

• Inspect the refrigerant lines. The suction line should be cold to the touch, while the liquid line should feel warm.

• Check refrigerant charge and look for leaks. If there is one, the detector will identify it.

• Inspect the evaporator coil and blower.

• Look at the condenser coil, then test the compressor function. If the fan runs but the compressor doesn’t, the system is just moving air.

• Check if the ducts are disconnected or crushed. Are there failed zone dampers? Any air bypassing due to leakage?

• Verify that the heat source is still functioning.

What Causes Foul Odors From HVAC Systems?

Foul odors are sometimes signs of biological growth, electrical faults, or trapped contaminants. Here’s how to determine which is the case:

• A musty or moldy smell is the most common. It usually means moisture is trapped somewhere. To fix it, clean the coil, clear the drain, and check for duct contamination.

• A rotten egg or sulfur odor could indicate a natural gas leak or a cracked heat exchanger that allows combustion gases into the air stream. Shut off the gas, ventilate, and don’t restart the system until it has been inspected.

• A burning or electrical smell needs urgent attention. Replace any damaged components, tighten connections, and clean out any dust.

• A sewage or methane smell typically originates from a broken sewer line near a return vent or a dry P-trap, allowing gas to enter the ductwork. Seal return leaks, refill traps, and call a plumber if there’s evidence of a break.

• Finally, a chemical or sweet odor often means a refrigerant leak. Older blends, such as R-22, usually have a pleasant aroma. Recover the refrigerant, repair the leak, perform a pressure test, and recharge according to EPA guidelines.

What Are HVAC Refrigerant Leaks and Their Symptoms?

A refrigerant leak results in pressure loss, efficiency loss, and eventual compressor damage if left unaddressed. Here’s how to spot, confirm, and respond to refrigerant leaks like a pro:

What causes refrigerant leaks?

Refrigerant leaks are most often caused by structural weaknesses within the system itself. These include:

• Abrasions in copper piping: Leaks can happen when copper lines rub against other components, eventually wearing through the pipe.

• Cracked or poorly sealed brazed joints: Improperly made or deteriorated brazed connections are a frequent source of leaks.

• Manufacturing defects in coils: Factory-produced coils, especially those made of aluminum, are prone to leaks, often due to a type of corrosion known as galvanic corrosion.

• Vibration damage: Constant vibration can lead to cracks in capillary tubes or refrigerant distributors.

What are the symptoms of a refrigerant leak?

Sometimes, refrigerant leaks don't leave obvious clues like oil stains or hissing sounds. If you suspect a leak but don't see or hear these typical signs, keep an eye out for these other indicators:

• Low cooling performance

• Low suction pressure

• Frost or ice on the evaporator coil or suction line

• Hissing or bubbling

• Compressor short cycling or overheating

What do you do when you find a leak?

The way you respond to a refrigerant leak all depends on the severity of the situation and location. If it's minor and accessible:

• Repair it

• Pressure test to confirm no new leaks

• Evacuate, weigh in proper charge per nameplate

But if it’s on a coil or in an inaccessible location:

• Recommend coil replacement or system replacement based on age

• Never just recharge and walk away without customer signoff

• Document the leak, refrigerant type, and charge amount

How Do You Identify HVAC Electrical Issues?

Electrical faults are a common fixture in HVAC systems. However, finding them can be a challenge, especially for an HVAC technician who’s not knowledgeable in electrical circuits.

Here’s how pros isolate electrical failures in the field:

• Check the breakers and disconnects: If there's no power to the system, nothing else matters. Ensure your circuit breaker hasn't tripped and that all outdoor disconnect switches are in the ‘on’ position.

• Test transformer output: A dead 24-volt transformer is often why your thermostat and controls are dark. Use a multimeter to confirm that it's producing approximately 24 volts AC. When replacing a transformer, always install an inline fuse—it's a cheap safeguard against another short circuit.

• Look for burnt or loose wire connections: Inspect terminal blocks, relays, and contactors for any signs of discoloration or melted insulation. Loose connections create resistance, which generates heat and ultimately leads to component failure.

• Inspect contactors and relays: Check the contacts on these components for pitting or burn marks, which indicate arcing and poor connection.

• Test capacitors: Use a digital multimeter with a capacitance setting. Remember to safely discharge the capacitor before testing, and compare your reading to the listed microfarad (µF) value on the capacitor itself.

• Check motor windings: Test the electrical resistance across the common, start, and run windings of the motor. If a motor feels hot to the touch or draws high amps at startup, it's a strong indication that it's about to fail.

• Use amp clamps for real-time diagnosis: Measure the actual current (in amps) that the compressor draws during startup and compare it to the Locked Rotor Amps (LRA) rating found on the compressor's data plate. If the current drawn spikes excessively or fluctuates erratically, it indicates an issue like a binding compressor, a failing motor, or another component under stress.

• Inspect the control board: Only examine the control board after you've thoroughly checked and ruled out problems with all other external components. Some control boards fail suddenly due to electrical surges, while others degrade slowly over time from prolonged exposure to heat or constant vibration.

What Is Short Cycling in HVAC Systems?

Short cycling is when the system starts and stops rapidly without completing a full heating or cooling cycle. It wrecks efficiency, destroys compressors, and drives up utility costs.

Typically, you’ll notice the following in a system that’s short-cycling:

• The HVAC system turns on and off every few minutes

• Indoor temps swing rapidly, never stabilizing

• Unusually high utility bills

• The compressor or blower cuts out prematurely

• The system never reaches the thermostat setpoint

After finding these symptoms in an HVAC system, the diagnosis isn’t complete. You still need to identify what’s causing it and then fix it before it causes further damage to the rest of the system. Here’s how:

• Oversized equipment: No amount of tweaking settings or replacing parts will fix an HVAC system that's simply too big for the space it's trying to cool or heat. The only solution here is to recommend a professional load calculation to determine the correct size and then replace the equipment with properly sized units.

• Low refrigerant charge: When the refrigerant charge is too low, the evaporator coil gets excessively cold, which often triggers the system's freeze protection or pressure safety switches. To confirm this, use refrigerant gauges, then meticulously locate and repair any leaks. Finally, weigh in the exact, correct amount of refrigerant according to manufacturer specifications.

• Clogged air filter or restricted airflow: A lack of proper airflow can cause the system to overheat or lead to pressure imbalances. The solution is straightforward: replace the air filter, thoroughly clean the coil, and then verify adequate airflow and static pressure throughout the ductwork.

• Thermostat issues: A thermostat with faulty logic or poor placement can send confusing signals to your HVAC system. Try relocating the thermostat to a more suitable location, replace its batteries, and test its operation using jumper wires at the terminal block to rule out wiring issues.

• High-pressure or low-pressure safety switch trip: These switches are critical safety devices. If a pressure switch opens due to abnormal refrigerant pressures, it will immediately shut down the entire system. Your response should be to clean the coils, check the airflow, and inspect the refrigerant charge. If it's safe to do so after addressing the underlying cause, reset the pressure switch.

• Flame rollout or limit switch trip (in heating): In furnaces, short cycling often occurs when safety sensors, such as the flame rollout or limit switch, trip. When this happens, you need to test the draft pressure, inspect the heat exchanger for cracks, and confirm there's a safe combustion path. Never bypass these safety limits as they protect against dangerous conditions.

• Failed control board or relay: If the control board or a specific relay is intermittently dropping voltage, it can mimic the symptoms of short cycling. To confirm this, you'll need to monitor for voltage drops during the system's cycle. Once confirmed, replace the faulty board or relay.

• Compressor overheating or hard starting: Compressors naturally wear down over time, and short cycling is a common symptom of a struggling compressor. You should test its amp draw, replace the capacitor (as a weak capacitor often causes hard starting), and, if necessary, install a hard-start kit to give it an extra boost. After any repairs, monitor the compressor's performance to ensure the issue is resolved.

How Do You Troubleshoot Drainage Problems?

If water is leaking from an air handler, the pan is full, or the float switch is tripping, you've got a drainage failure. It’s usually simple to fix, but only if you trace it correctly.

Here’s how to troubleshoot HVAC drainage issues the right way:

1. Start at the secondary drip pan

If you find water in this pan, it's a clear sign that the primary drain line is clogged or backing up. A properly wired float switch in this pan should shut off your system to prevent an overflow. If it's not wired correctly or fails, you could end up with water spilling into your ceiling or floor.

To fix: Use a wet/dry vac or nitrogen to clear the drain line. Confirm it flows freely before restarting the system.

2. Inspect the primary condensate line

Clogs in this line usually form within the first few feet of the PVC pipe.

To fix: Flush the line with a mix of warm water and vinegar, or use a slime-removal tablet. If it clogs again, install a cleanout with a tee and cap.

3. Check the trap configuration

A missing or incorrectly installed P-trap can cause your system to suck in air instead of draining water.

To fix: Install a proper P-trap with a cleanout. For systems with negative pressure, always use a deep trap. Also, confirm that the vent after the trap is present and not capped off.

4. Test float switches

Both pan float switches (in secondary pans) and inline switches (on primary lines) are designed to cut power to your system when they detect high water levels. If a float is stuck, corroded, or wired incorrectly, it can either prematurely shut off your system or allow water to overflow.

To fix: Replace any switches that are stuck or faulty. Always test them thoroughly before finishing the job.

5. Inspect the drain pan and coil area

Sometimes, the drain line works, but the pan itself is cracked or rusted. Water leaks straight through, especially on older systems. Rust flakes may also clog the line from the inside.

To fix: Replace the pan or seal with a proper pan repair kit if temporary. Recommend replacement if the coil is old or leaking directly onto the pan.

6. Check for positive pressure blowback

In horizontal HVAC units, the blower can create positive pressure that blows water back into the coil housing if there's no trap or if the vent is blocked.

To fix: Rebuild the drain line with a proper trap and vent. Double-check the airflow direction and the system's orientation.

7. Look at ductwork near air handlers in hot attics

Sometimes, the issue isn't with the drain system itself but with condensation forming on the outside of return or supply ducts that are sweating.

To fix: Insulate any sweating ducts. If necessary, address attic ventilation or overall humidity levels in the attic space.

What Tools Are Needed for HVAC Troubleshooting?

The right HVAC tools cut your diagnostic time in half, reduce callbacks, and give you evidence-based answers on every call. Let’s break them down by function and use case:

• Multimeter (with voltage, continuity, and capacitance modes)

• Clamp meter

• Refrigerant manifold gauges or digital gauges

• Temperature probe or infrared thermometer

• Leak detector (electronic or ultrasonic)

• Static pressure meter or manometer

• Anemometer or airflow hood

• CO detector and combustible gas detector

• Wet/dry vac or drain gun

• Thermal imaging camera (optional but powerful)

And when you need to calculate system capacity, diagnose airflow, or estimate refrigerant charge, you can use ServiceTitan’s free HVAC tools and calculators to make the job faster and more accurate.

What Safety Precautions Should Be Taken During HVAC Troubleshooting?

Troubleshooting HVAC systems means dealing with electricity, pressure, heat, rotating machinery, and sometimes gas. Every step in your diagnosis should include a plan for personal protection and customer safety.

Here’s a checklist to ensure safety:

 1. De-energize the system before opening panels

Shut off power at the disconnect and verify it with a meter before opening the panels. Use a non-contact voltage tester before touching wires.

2. Wear appropriate personal protective equipment (PPE)

Ensure you wear insulated gloves when working on electrical components and safety glasses to protect against refrigerant spray, dust, and debris. Other PPE includes steel-toe boots and nitrile gloves.

3. Handle refrigerants with care

Refrigerants under pressure can cause frostbite or eye injury if released improperly. Always recover refrigerant in accordance with EPA guidelines and use hoses and manifolds rated for the specific refrigerant type. Finally, check the tank weight and pressure before transport.

4. Discharge capacitors before testing or removing

Even if the system is off, capacitors hold a charge. So, use an insulated screwdriver with a resistor if your meter doesn’t auto-discharge. Always confirm zero voltage across terminals before touching.

5. Be cautious around moving parts

Blower wheels, condenser fans, and compressors can spin unexpectedly. So you must be cautious when working with them. Never stick fingers or tools near moving blades.

6. Monitor for combustion hazards

Gas furnaces and oil burners carry fire and CO risks.

So, use a CO detector during every heating season diagnostic. Check for flame rollout, soot, or delayed ignition, and never operate a furnace with a known exchanger crack or blocked flue.

Finally, document every safety incident, no matter how minor. If it happened once, it can happen again. This will help you and future techs to prepare better.

How Can HVAC Technicians Troubleshoot More Efficiently?

The faster you can access equipment history, confirm system status, locate parts, and document your work, the faster you can isolate the issue and proceed.

That’s where ServiceTitan comes in.

Here’s exactly how ServiceTitan’s field tools make HVAC troubleshooting faster and more accurate:

1. Diagnose faster with instant access to equipment history

Reviewing the full service and maintenance history of an HVAC system can reduce diagnostic time. This helps you understand the details of past repairs and identify recurring issues, which can help you narrow down the problem more easily.

ServiceTitan’s Mobile App solves this issue.

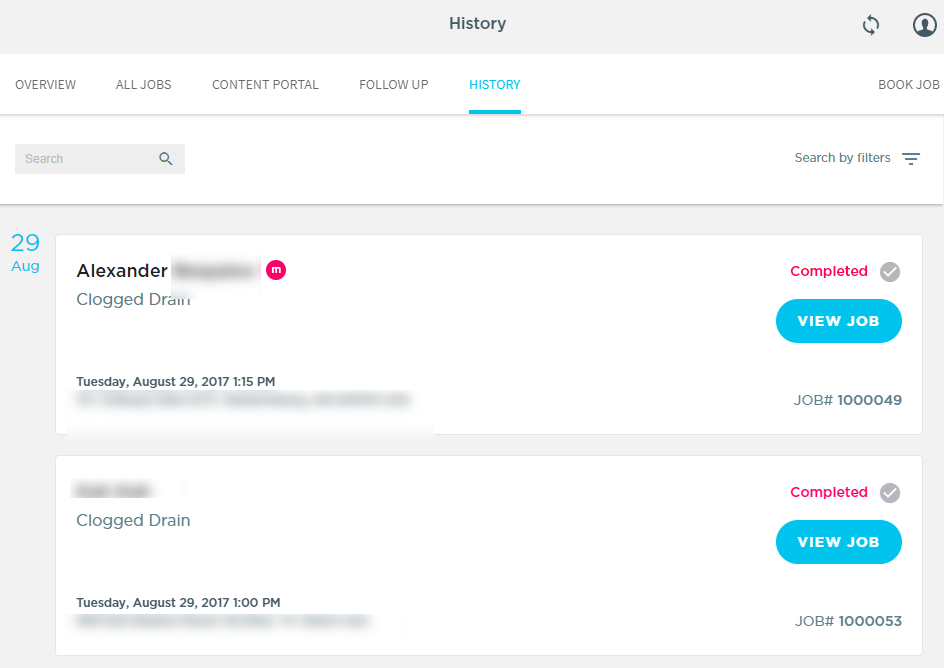

When a technician opens a job in the ServiceTitan Mobile App, they can tap into the ‘History’ tab within the job view to see the installed equipment, full-service history for the system, photos, and even job notes left by previous technicians.

For example, if the previous technician replaced a blower relay for an intermittent blower failure, and the blower is now completely dead, the new technician doesn’t need to re-test every component. Instead, they’ll likely go straight to confirm a complete motor failure, which speeds up the diagnosis.

2. Stay on track with real-time project and equipment tracking

When there’s a centralized dashboard for active jobs, technicians and project managers can track projects and equipment in real time.

That way, everyone knows the job status, can follow through, avoid delays, have better resource planning, and work with accurate, real-time data.

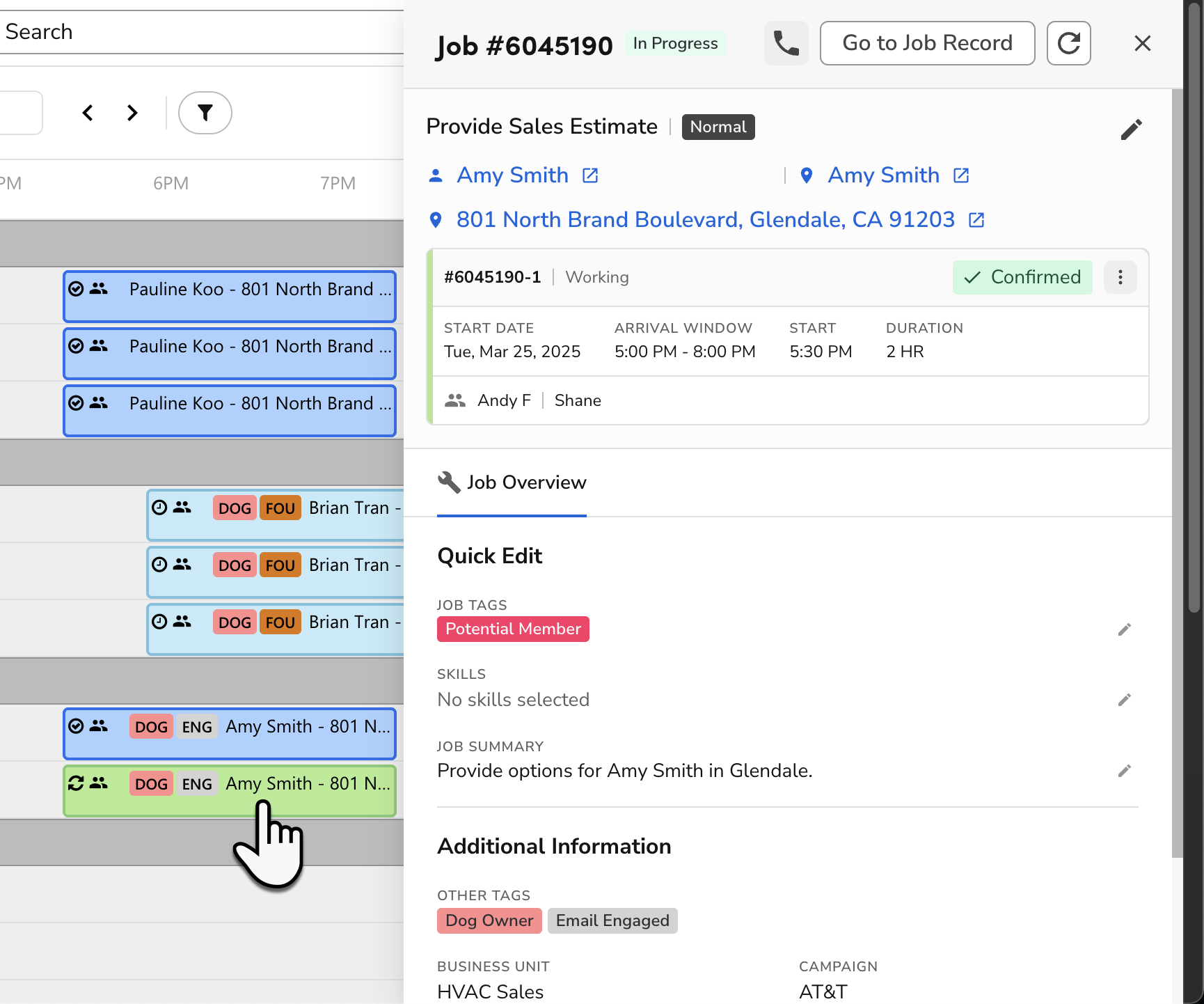

In the Dispatch Board and Job Timeline, office staff and techs can track:

• Whether a job is in progress, completed, or awaiting parts.

• Which system components have been serviced, flagged, or replaced.

• Which techs worked on the job, and what time-stamped updates they logged.

You can access the Dispatch Board under the ‘Dispatch’ tab and then click any job card to open the Job Overview. There, you can see all field entries, like arrival, parts used, photos uploaded, and HVAC forms completed.

3. Inventory visibility helps prevent delays on the job

Real-time inventory management allows technicians to know what equipment is available in their trucks or warehouses. That way, they reduce the delays or downtime due to missing equipment needed for troubleshooting.

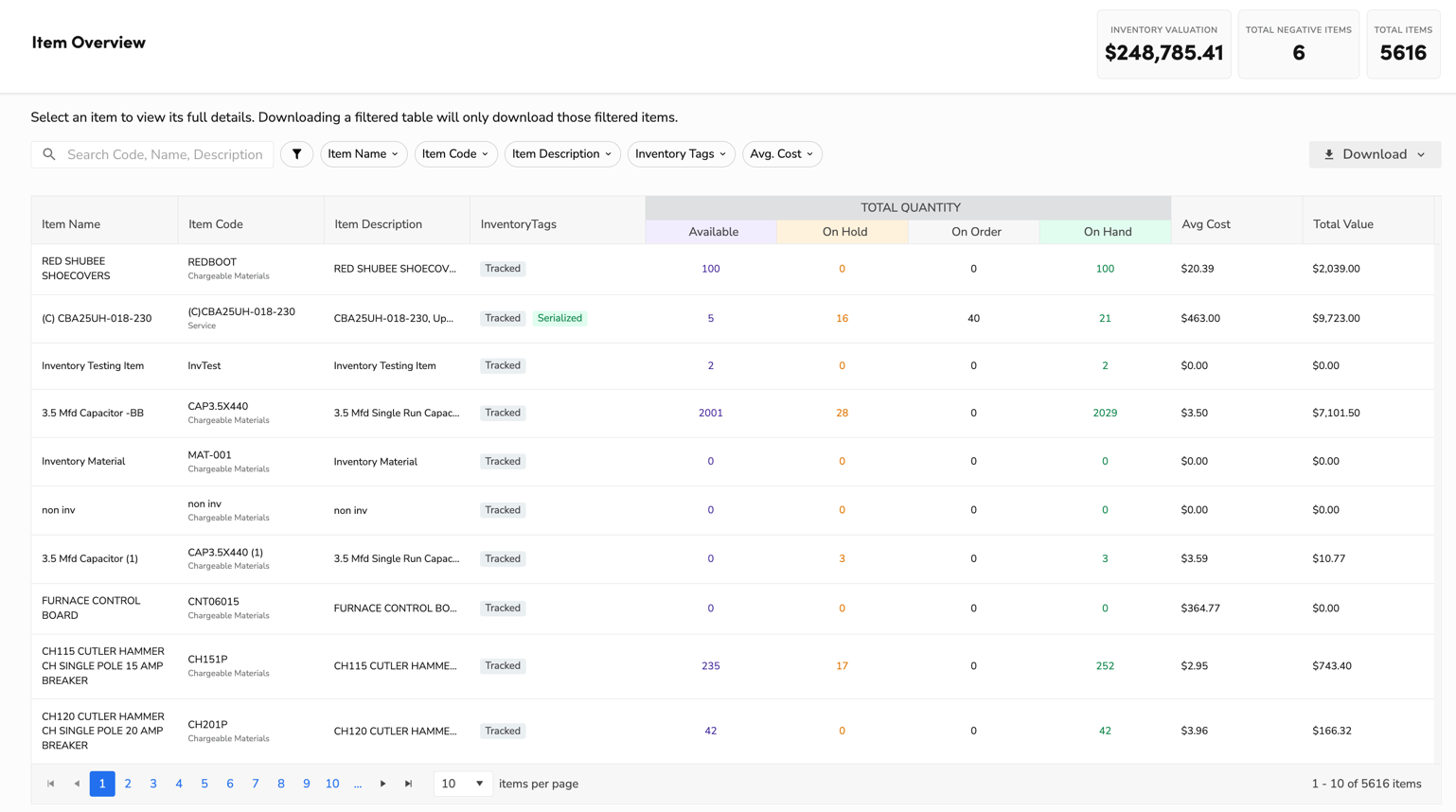

Using the ServiceTitan Inventory Management platform, techs can check real-time stock of parts across their truck’s inventory, nearby technicians’ vehicles, and the main warehouse or satellite storage locations.

From the Inventory tab on the mobile app, technicians can check stock levels per location and request a transfer or flag a restock if needed.

4. Customizable mobile forms and reports standardize field diagnostics

Digital forms and reports guide technicians through consistent diagnostic steps, ensuring that no critical checks are missed. This improves service quality and makes it easier to hand off cases or follow up on previous calls.

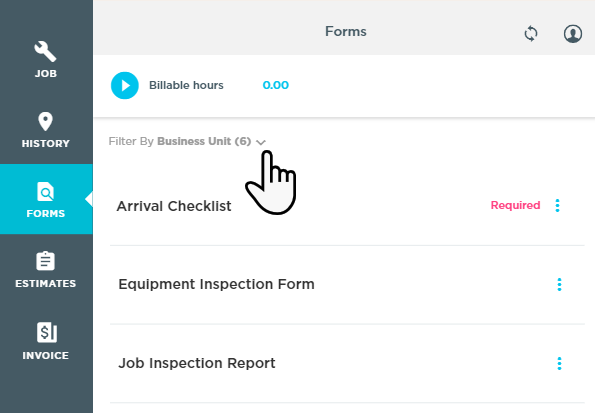

HVAC lead technicians can use ServiceTitan’s Mobile Forms Builder to create these custom diagnostic forms and templates for different job types. Techs complete these forms during service visits, ensuring nothing is skipped, and every system check is logged.

These forms may require photos, dropdown selections, or specific answers to be auto-attached to the job record and visible to office staff. These forms serve as a standard procedure to ensure all necessary information is available for troubleshooting.

These tools also simplify compliance and documentation for both techs and office techs.

5. Integrated pricing and estimates help present repair options clearly

Having access to a built-in pricebook and estimate generator improves transparency with customers and helps techs close deals in a professional way.

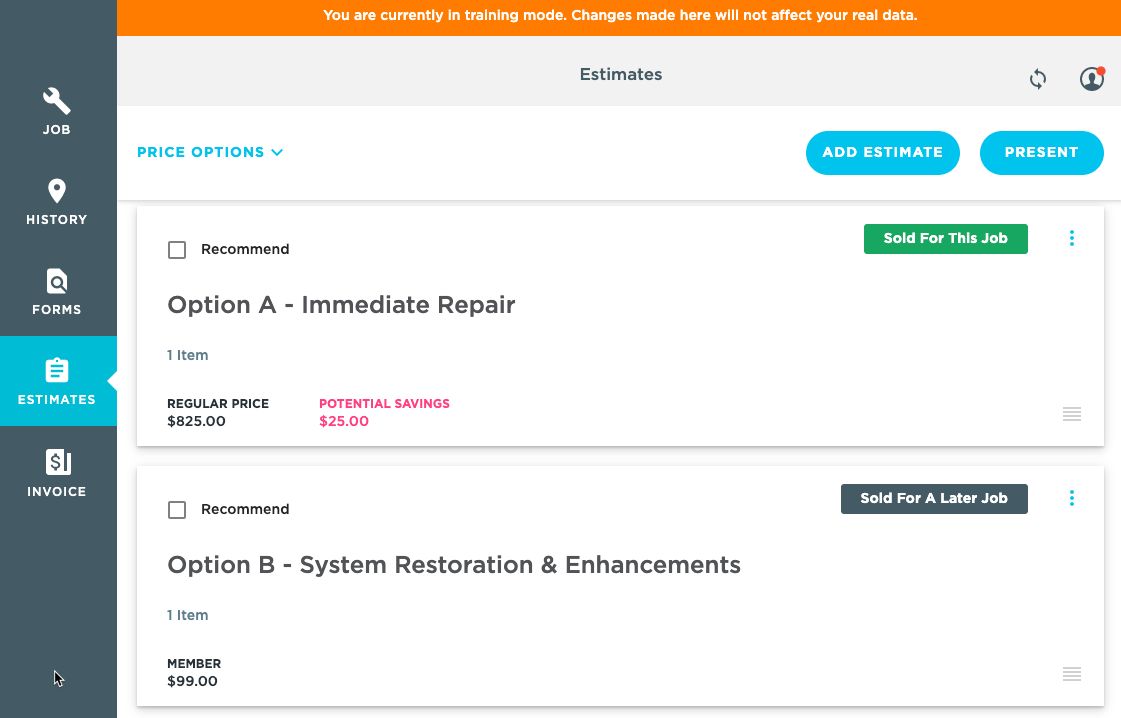

With the ServiceTitan Pricebook and Estimate Builder, technicians can create a clear, line-item quote that includes descriptions, pricing, and other relevant information. They can also attach photos or videos showing the proposed repair work, apply discounts, memberships, or financing offers, and present the estimate to the homeowner for a digital signature.

On the Estimates tab, you can add items from the Pricebook, organized by category or keyword. You can also add photos to each line item directly from your phone camera.

Over to You!

Most HVAC issues aren’t complex if you know the common troubleshooting scenarios and how to fix them.

When you combine this skill with tools like ServiceTitan, the job history, mobile forms, and inventory management features remove the friction from every step of the troubleshooting process.

So here’s your next move: book a demo to find out how ServiceTitan helps you deliver top-notch HVAC services to your customers.

ServiceTitan is an all-in-one software solution for home service businesses and HVAC contractors who want to automate their workflows, simplify administrative processes, and increase revenue by an average of 25 percent in their first year.
