Common Electrical Blueprint Symbols, Meanings & Abbreviations

What Are Electrical Symbols?

Electrical symbols are standardized graphic representations used in blueprints and schematics to illustrate electrical components and connections. These elements act as a visual shorthand for devices like switches, outlets, circuit breakers, transformers, and more.

Instead of drawing each part in detail, you use these symbols to quickly communicate complex electrical layouts. Once you understand what each symbol means, you can interpret system designs clearly and carry out installations or repairs with greater efficiency and accuracy.

Let’s explore the importance of these visual elements further.

Why Are Electrical Symbols Important?

Being familiar with electrical symbols is essential for working safely and effectively in the field.

Here’s why these elements are so important:

• Recognizing each electrical symbol correctly helps you follow a blueprint with precision, allowing you to install devices exactly where and how the design specifies.

• Maintenance becomes more straightforward when you can read symbols for panels, relays, and control devices directly from the drawing, helping you locate components faster and avoid unnecessary delays.

• Troubleshooting is much more efficient, as you can trace electrical paths and pinpoint faults without confusion or backtracking.

Misinterpreting symbols can lead to serious problems. For instance, mistaking a ground symbol for a neutral connection might cause a short circuit and pose a safety risk. Installing the wrong type of switch in a fire alarm circuit could delay emergency response.

Now, let’s explore the most common types of electrical symbols so you can avoid costly errors and keep systems running reliably.

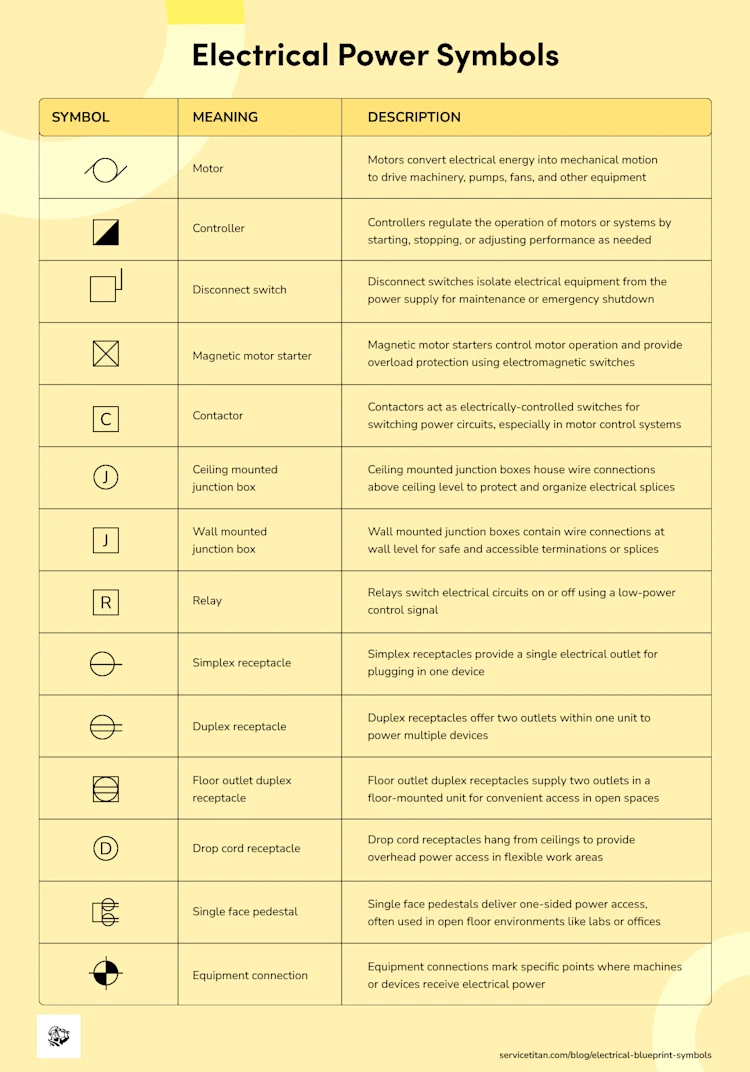

Electrical Power Symbols

Electrical power symbols represent components related to power distribution, such as outlets, circuit breakers, transformers, and panels.

You use these elements to understand how electricity flows from the main service to various parts of a system, helping you map out load centers and power circuits.

Here’s a quick reference table of common electrical power symbols and their meanings to make your work easier.

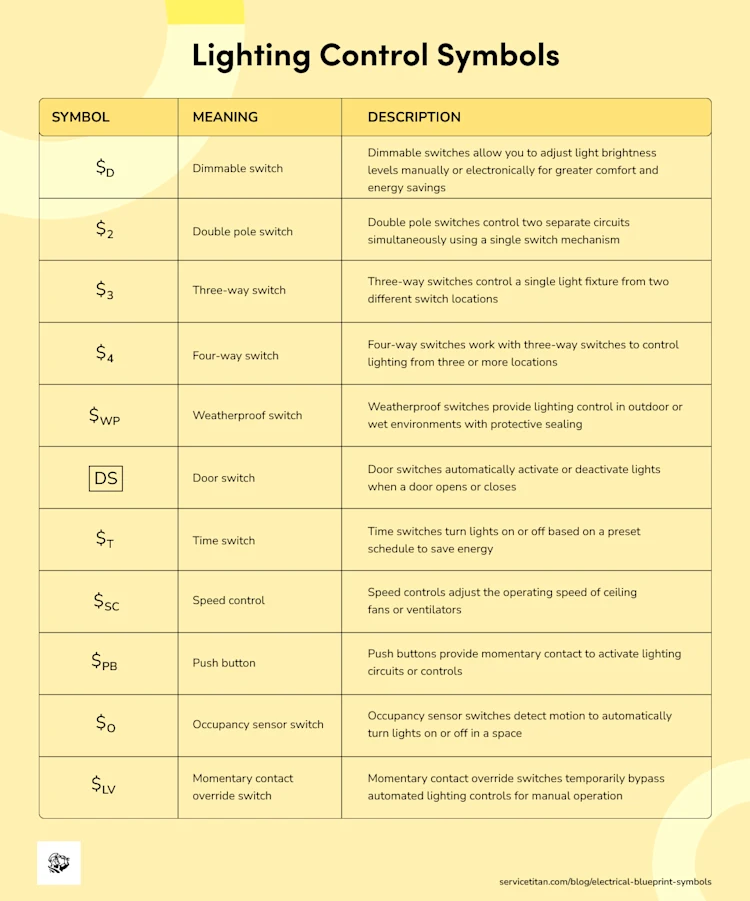

Lighting Control Symbols

Lighting control symbols illustrate switches, dimmers, motion sensors, and other devices that manage lighting systems.

These graphical representations help you plan lighting layouts and control strategies, ensuring the correct placement and wiring of controls.

Take a look at the following table of commonly used lighting control symbols to get a better grasp of these elements.

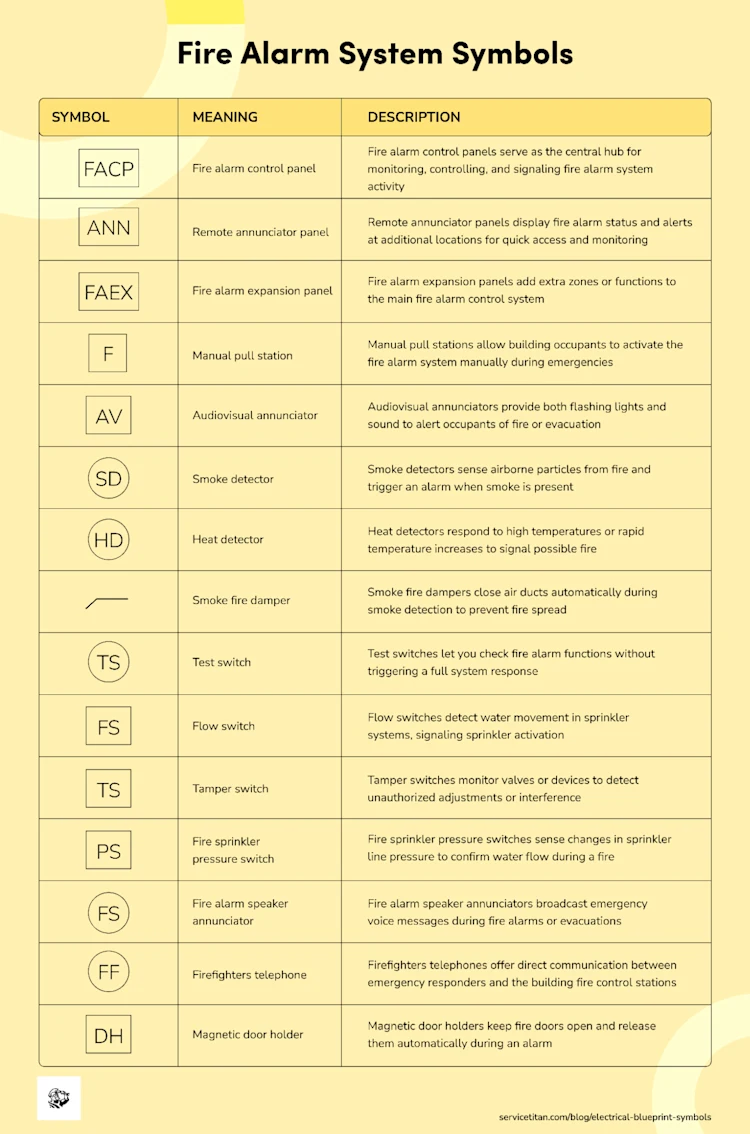

Fire Alarm System Symbols

Fire alarm system symbols indicate components like smoke detectors, manual pull stations, strobes, and control panels.

You rely on these symbols to design or service systems that meet safety codes and provide early warning in emergencies.

Here's a table of standard fire alarm system symbols to help you recognize these elements quickly.

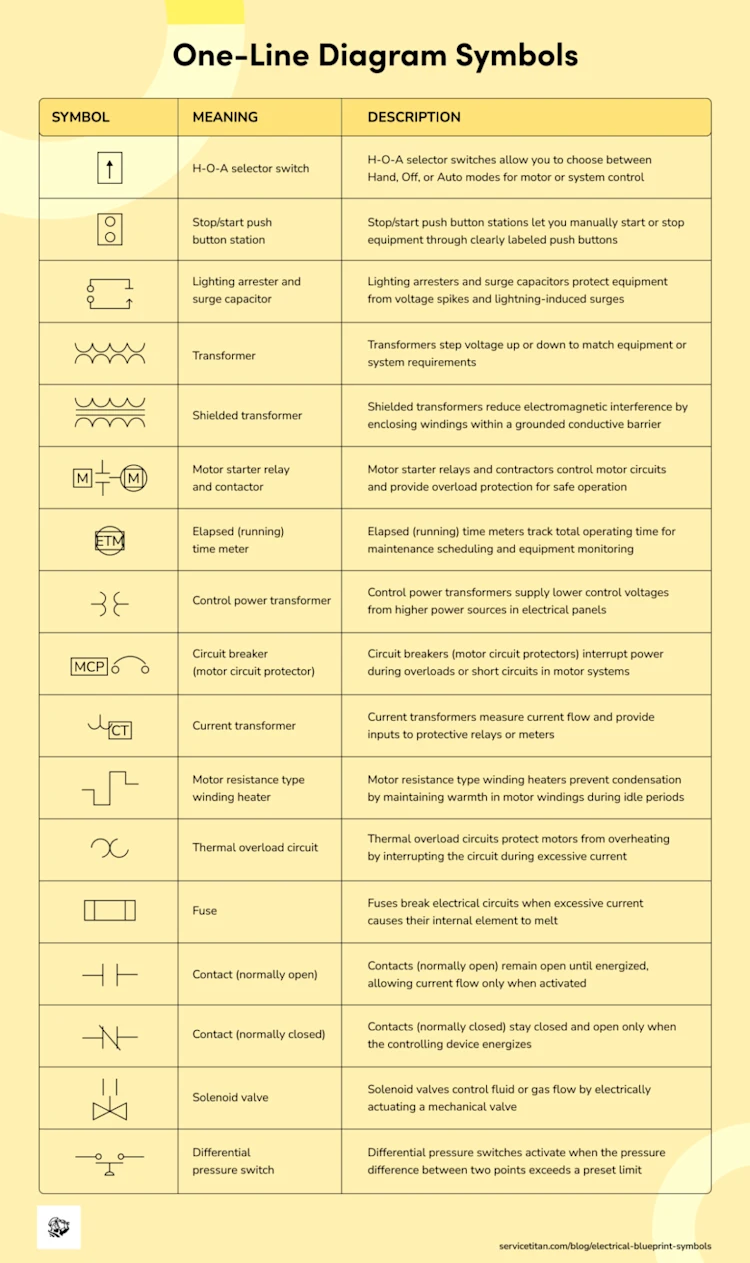

One-Line Diagram Symbols

One-line diagram symbols offer a simplified view of an electrical system, showing the main paths of power flow using single lines and basic icons for transformers, breakers, and other major devices.

These diagrams help you get a high-level overview of a system layout and load distribution.

Check the table below to see key one-line diagram symbols and their uses.

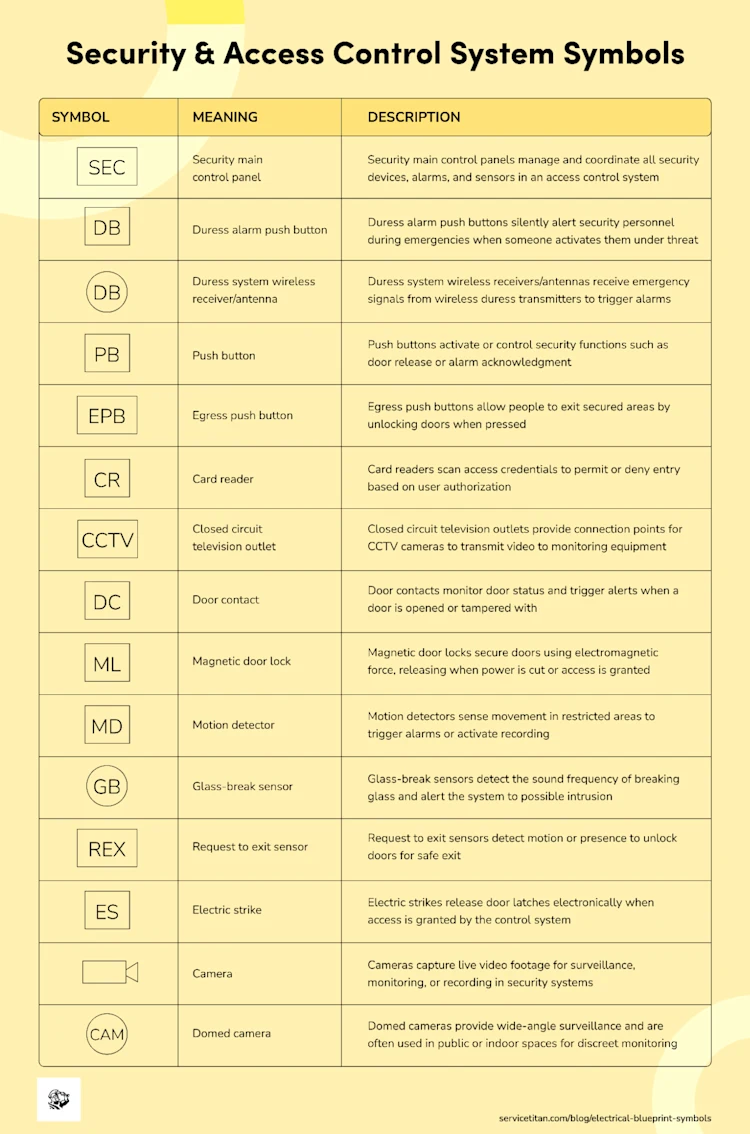

Security & Access Control System Symbols

Security and access control symbols represent devices such as surveillance cameras, door locks, and alarm panels.

You use these visual elements to design or maintain systems that manage entry, monitor activity, and enhance building safety.

Refer to the table of access control and security symbols below to better understand the layout of these systems.

Now that you’re familiar with key electrical symbols, it’s just as important to understand the abbreviations commonly found alongside them.

Common Electrical Abbreviations

Electrical abbreviations are shortened forms of technical terms used on blueprints, schematics, and wiring diagrams. These abbreviations help save space and make complex drawings easier to read.

You often see these shortened forms next to symbols, within equipment labels, or in legends. Knowing these abbreviations allows you to interpret documents quickly and avoid confusion during installation, troubleshooting, or maintenance.

Here’s a list of the most common electrical abbreviations you’re likely to encounter:

• A – Ampere

• AIC – Ampere interrupting capacity

• BLDG – Building

• C – Conduit

• CT – Current transformer

• EF – Exhaust fan

• ELEC – Electric

• FACP – Fire alarm control panel

• FLA – Full load amps

• GFCI – Ground fault circuit interrupter

• GND – Ground

• HOA – Hand-Off-Auto

• HTR – Heater

• kVA – Kilovolt ampere

• kCM – Thousand circular mils

• LTG – Light or lighting

• MCB – Main circuit breaker

• MCC – Motor control center

• MSB – Main switchboard

• NEC – National Electrical Code

• OL – Overload

• SC – Split circuit

• SW – Switch

• UG – Underground

• WP – Weatherproof

With symbols and abbreviations out of the way, it’s time to focus on some practical tips for reading and interpreting electrical blueprints more effectively.

Tips for Reading and Interpreting Electrical Blueprints

Reading electrical blueprints accurately helps you complete tasks faster, minimize mistakes, and coordinate more effectively with other trades on-site. A structured approach gives you the clarity and confidence you need to install or troubleshoot systems efficiently.

Here are some of the best tips to guide your process:

Tip 1: Check the legend and title block

Begin by reviewing the legend and title block on the blueprint. These sections explain the symbols, abbreviations, scale, and drawing revisions. Understanding these details gives you a solid foundation before examining circuits or layouts.

Tip 2: Identify major components first

Locate main distribution panels, transformers, and service entrances before you study individual branch circuits. Once you recognize the core elements of the system, you can easily trace paths and understand the drawing’s overall logic.

Tip 3: Follow circuit paths step by step

Trace each circuit from the power source through to its connected loads, such as lighting, receptacles, or motors. Use this approach to spot any missing connections or inconsistencies before installation.

Tip 4: Use color-coding or digital tools

Highlight circuits using different colors or digital markups on tablets. This strategy makes complex blueprints easier to follow and reduces confusion when identifying systems like emergency power or low-voltage controls.

Tip 5: Cross-check with other disciplines

Electrical systems often share space with plumbing and HVAC components so you should coordinate your work across all disciplines.

Before installation, compare the electrical drawings with mechanical and plumbing plans to prevent layout conflicts. If you come across overlaps or unclear details, speak with a supervisor, designer, or the trade professional involved to get clarity.

For a better understanding of how these systems align, take a few minutes to explore common HVAC symbols and plumbing symbols. This knowledge helps you plan more efficiently and avoid costly rework on-site.

Tip 6: Keep your own symbol reference handy

Store a quick-access chart of frequently used symbols on your phone or notepad. This approach improves speed and reduces guesswork, especially when working on unfamiliar projects.

Up next, explore how ServiceTitan can enhance your field operations.

How ServiceTitan Supports Electricians in the Field

ServiceTitan’s versatile electrical contractor software is built to streamline every part of your workflow, from scheduling installations and tracking estimates to managing inventory and building electrical maintenance programs. You can organize jobs, monitor performance, and manage customer relationships all in one place.

However, for field electricians like yourself, the true value lies in the ServiceTitan Field Service App. This solution bridges the gap between office operations and fieldwork by giving you real-time access to essential job details, customer history, and task checklists the moment you’re assigned a call.

Here’s a breakdown of our mobile app’s capabilities.

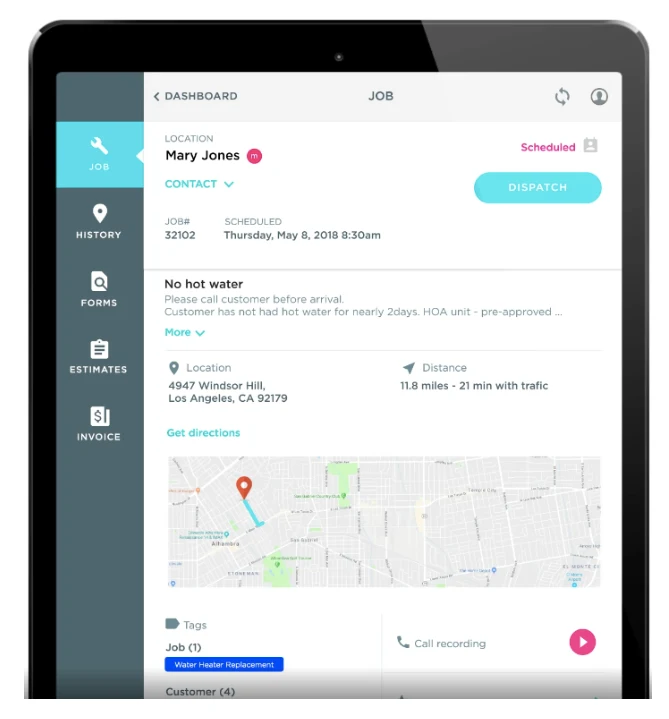

Access job details anytime, anywhere

The ServiceTitan mobile app gives you full visibility into your upcoming schedule and customer details, including previous visits, equipment specs, and even call recordings.

You can review the job history before going to a job site to prepare for system repairs, confirm part requirements, and make sure you bring the necessary electrician tools.

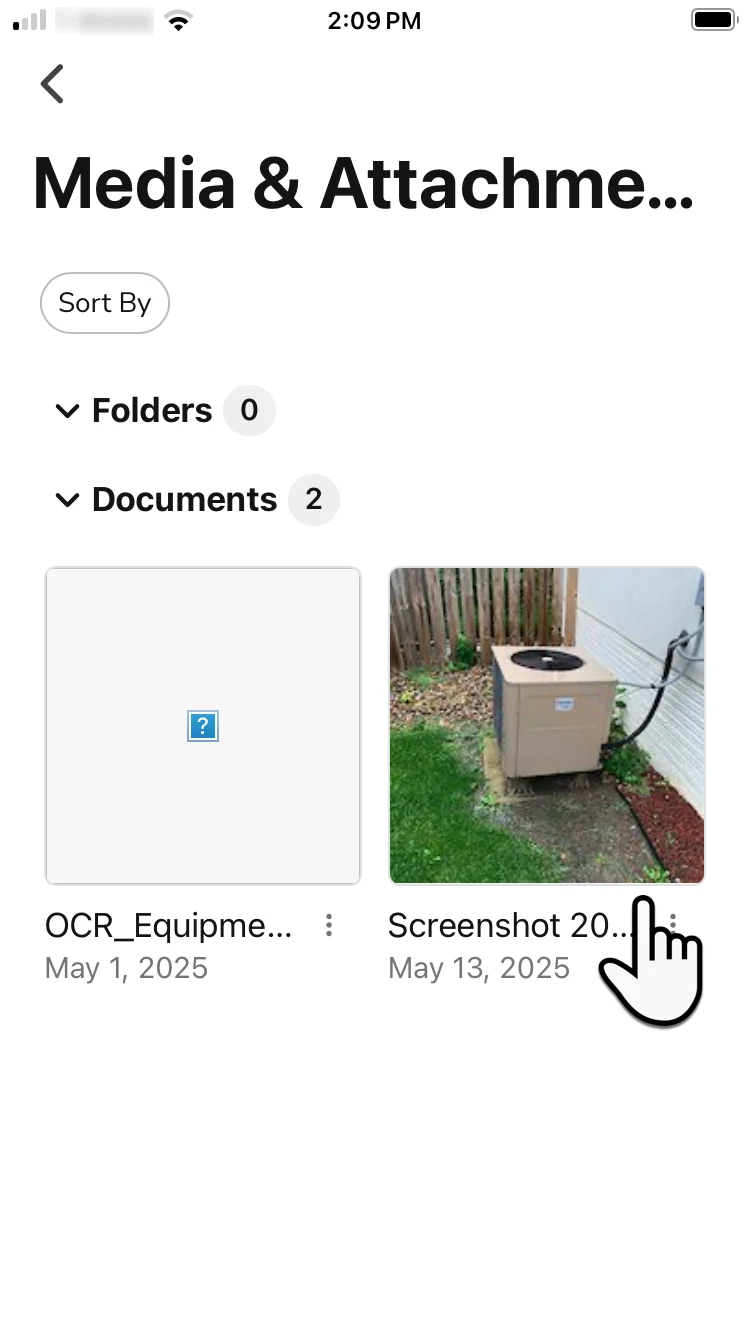

Capture and share on-site visuals instantly

You can document every job with photos or videos of wiring connections, breaker boxes, or conduit runs, use digital markup tools to highlight important elements, and attach the media files to the job record.

You can combine this visual data with detailed technician notes to keep your team aligned across service visits. All this information helps reinforce electrical safety by providing clear references to how systems were installed or altered.

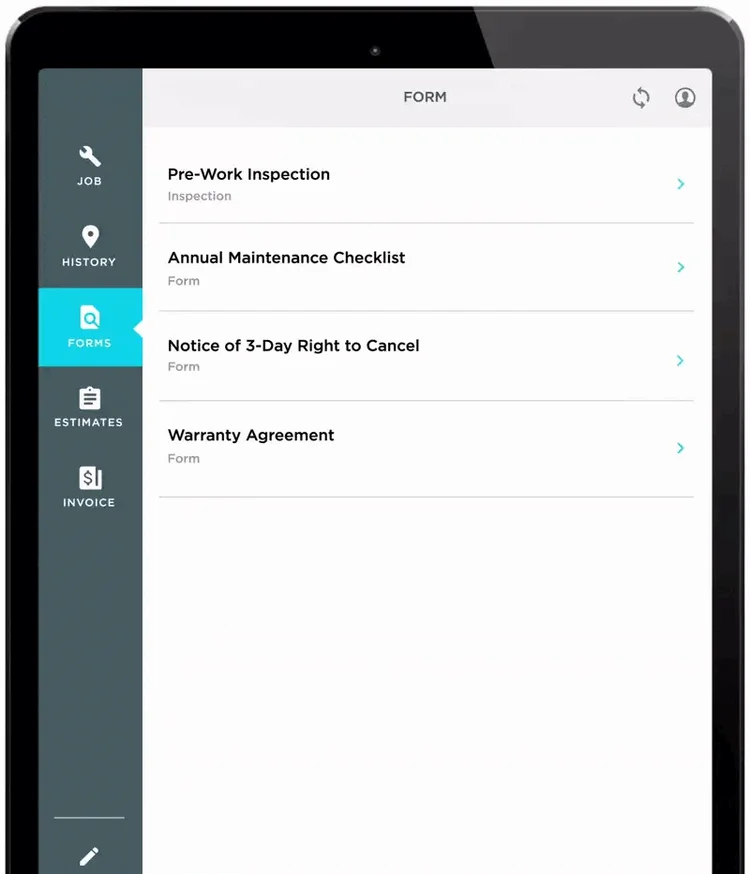

Use digital forms to standardize fieldwork

Create personalized digital forms that match your workflow, such as installation checklists, safety audits, warranty agreements, or inspection reports. These forms help your field workers follow code, complete every step, and log key data, whether they're troubleshooting lighting control systems or maintaining MCC (motor control center) panels.

Build and present estimates on the spot

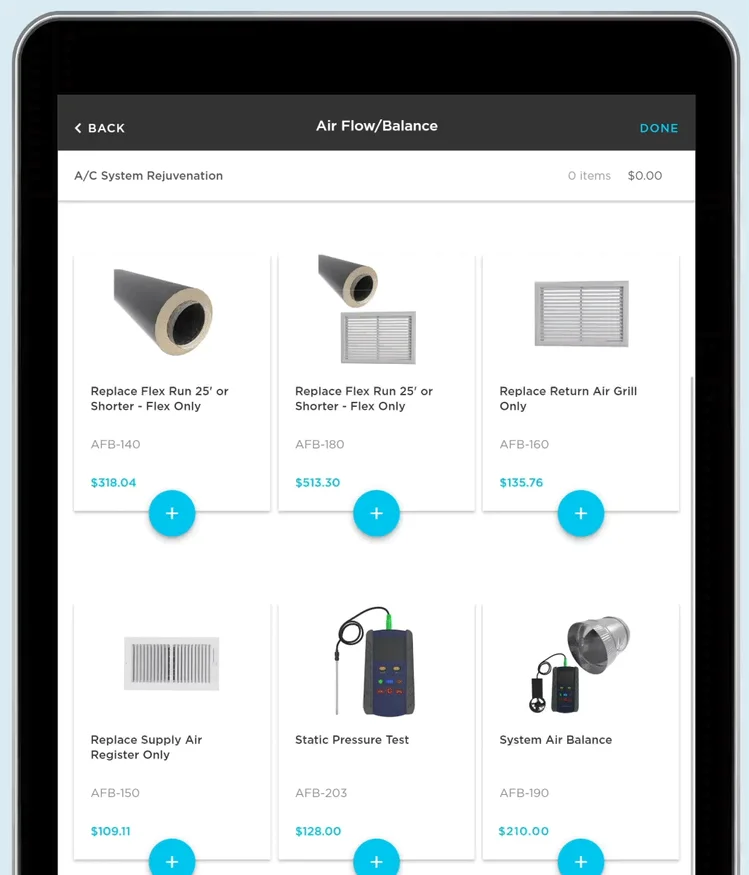

Build professional estimates from your mobile device using real-time product data and pricing provided by ServiceTitan Pricebook Pro. You can present multiple service options to customers, complete with product images and specs, and secure approvals on the spot.
